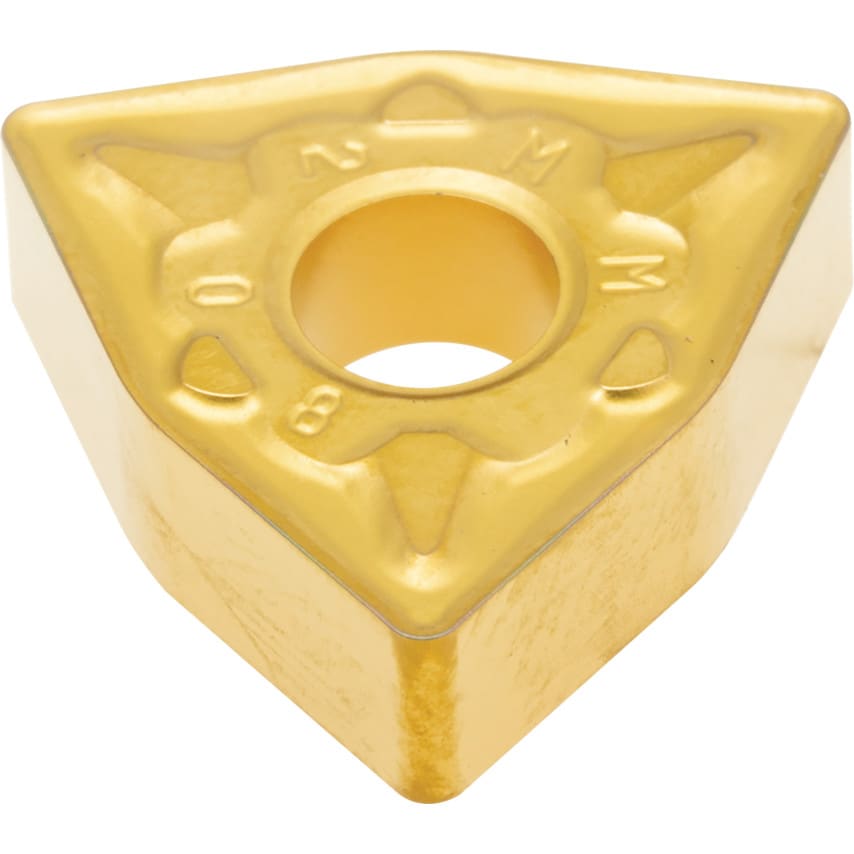

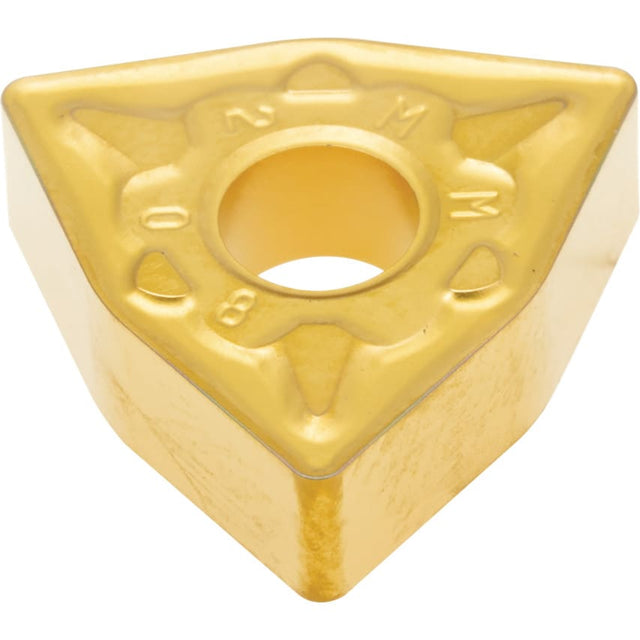

WNMG MM 80 trigon turning inserts are manufactured from a hard carbide substrate for excellent toughness and a CVD TiCN+Al2O3+TiN coating for greater heat and wear resistance.
Features and Benefits
Hard carbide construction for improved toughness
CVD TiCN+Al2O3+TiN coating for greater heat and wear resistance
6 cutting edges for excellent cutting performance
Geometry is most ideal for applications at medium speeds
Typical Applications
Turning
Medium speeds
Standards
Insert grade 2025
(M15-M35)
| Material Application | Stainless Steels |
| Thickness | 4.76mm |
| Chipbreaker | MM |
| Clearance Angle | 0\u00b0 |
| Finish/Coating | Al2O3+TiCN+TiN |
| MFR Part No. | 10911272 |
| Material | Carbide |
| ISO Designation | WNMG 080408-MM |
| ISO Category | M |
| ISO Cut | M15 to M35 |
| Corner Radius | 0.8 |
| Cutting Edge Length | 8.7mm |
| Manufacturer Grade | 2025 |
| Pack Quantity | 1 |
| Cutting Direction | Neutral |
| Inscribed Circle | 12.7mm |
| Insert Style | WNMG |
| ISO Category Grade | M |
| Product Type | Inserts |
| Shape | Trigon |
| Insert Size | 080408 |
