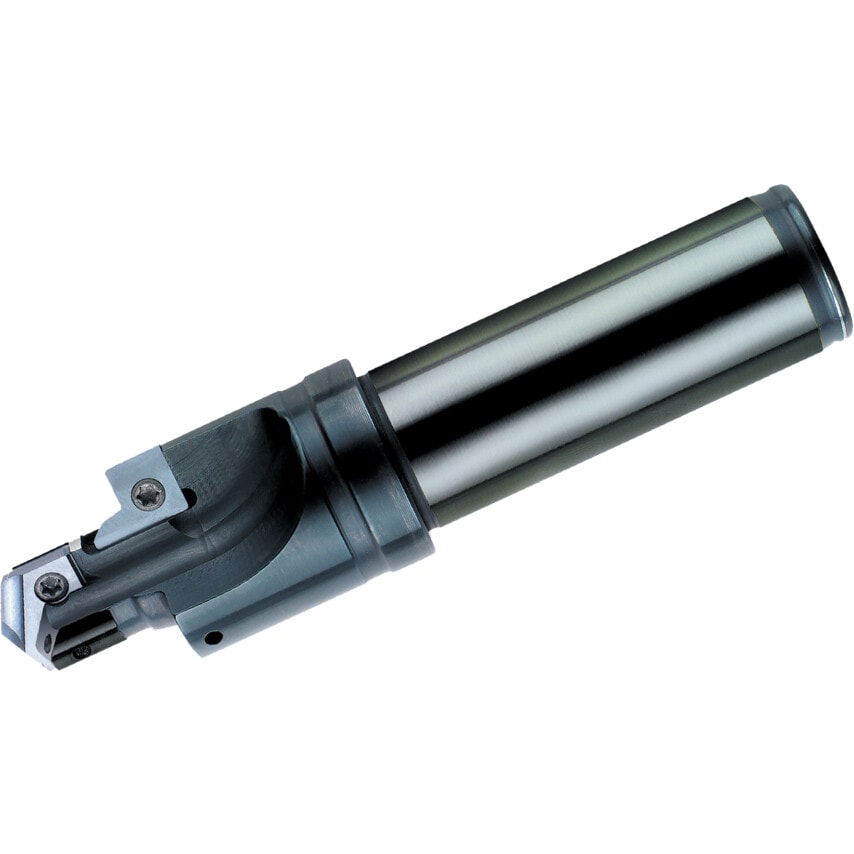

This innovative hydraulic port cutter uses high performance T-A insert technology to deliver outstanding results, accuracy and productivity without the need for pilot drilling, which significantly reduces operation time and costs.
| Tube Dash Number | -24 |
| Shank Length | 68.3mm |
| Seal Angle | 15\u00b0 |
| Coolant Delivery | Coolant Through |
| MFR Part No. | J1926-243-150F |
| Shank Diameter | 38.1mm |
| Product Type | AccuPort 432 Cutter |
| Overall Length | 146.1mm |
| Spotface Diameter | 65mm |
| Pilot Length | 23mm |
| Type | Holder |
| Seal Angle Length | 3.5mm |
| Port Standard Designation | MS-16142 | SAE J-1926-1/ISO 11926-1 |
| Port Thread Size | 1 7/8\ - 12 UN-2B |
| Spotface to Shoulder Length | 45.2mm |
| Reference Length | 45.2mm |
| Pilot Diameter | 45.5mm |
