Product Range: Coromant U

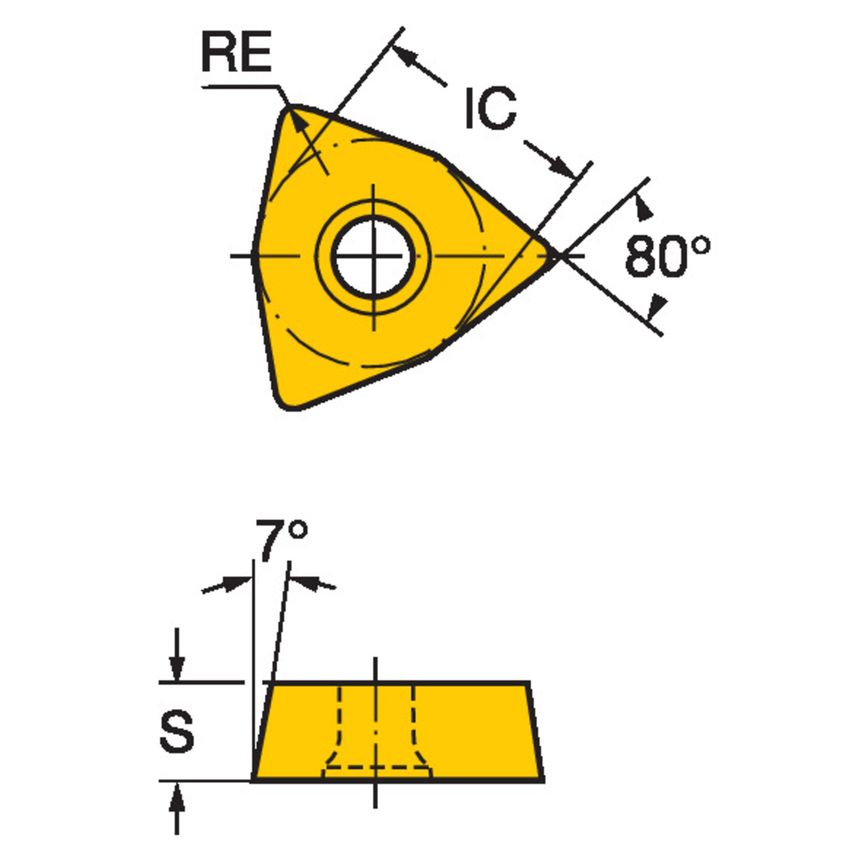

| Insert Size | 06T3 |
| Insert Mounting Style | Screw/Clamp |
| Manufacturer Grade | 3040 |
| Insert Size/Shape | CoroDrill U WC06T3xxP |
| Insert Thickness | 3.97mm |
| Weight | 4.2g |
| Cutting Edge Count | 3 |
| Chipbreaker | 58 |
| Inscribed Circle Diameter | 9.53mm |
| Fixing Hole Diameter | 3.7mm |

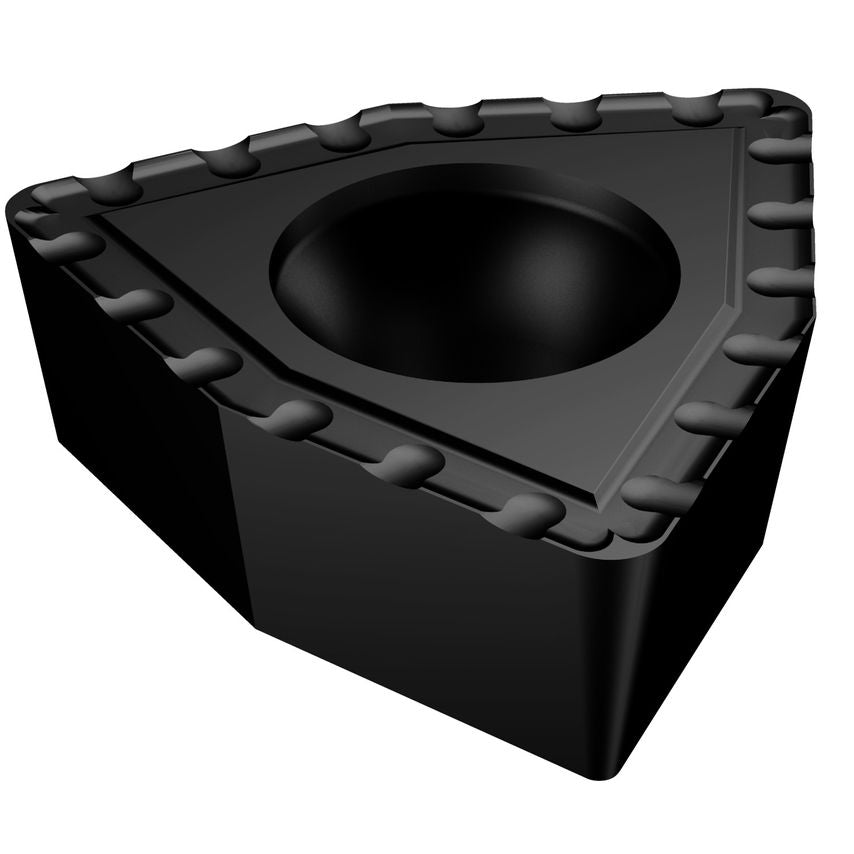

| ISO Designation | WCMX 06 T3 08-58 3040 |
| Grade | 3040 |
| Corner Radius | 0.8mm |
| Insert Style | WCMX |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 99.1 |
| Coating Type | TiCN+Al2O3 |
| Product Type | Drilling Inserts |
| Insert Rake Angle | 18\u00b0 |
| Coating Process Type | CVD |
| Unit Measured | Metric |
| Insert Usage Code | Peripheral |
| Insert Shape | Trigon |
| Through Hole Function Property | Yes |
