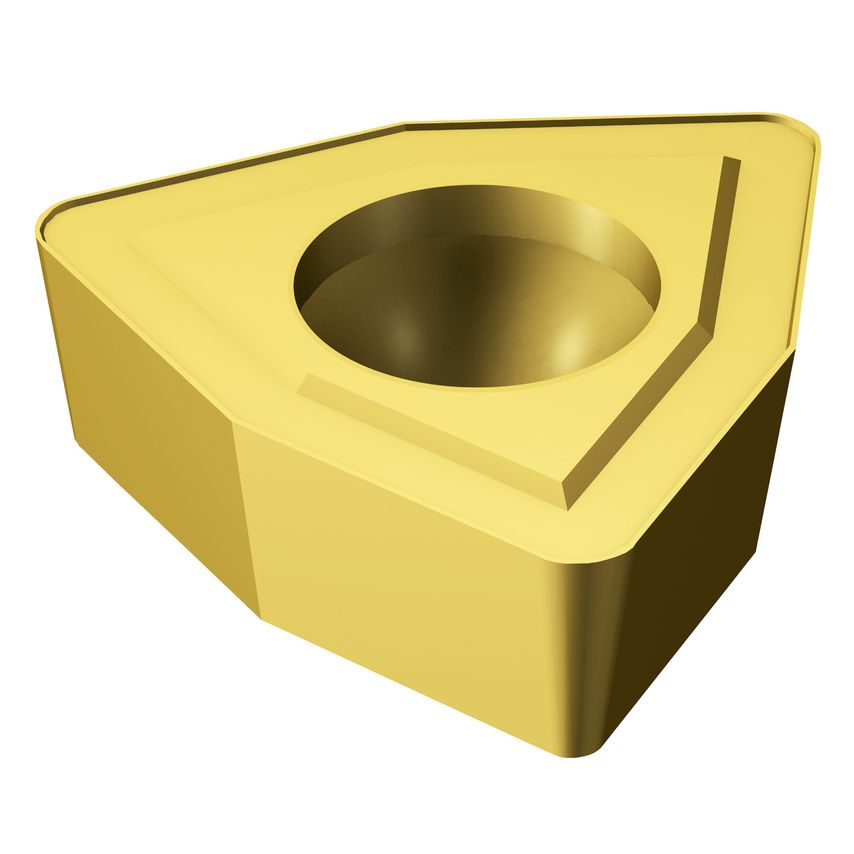

Product Range: Coromant U
| Unit Measured | Metric |

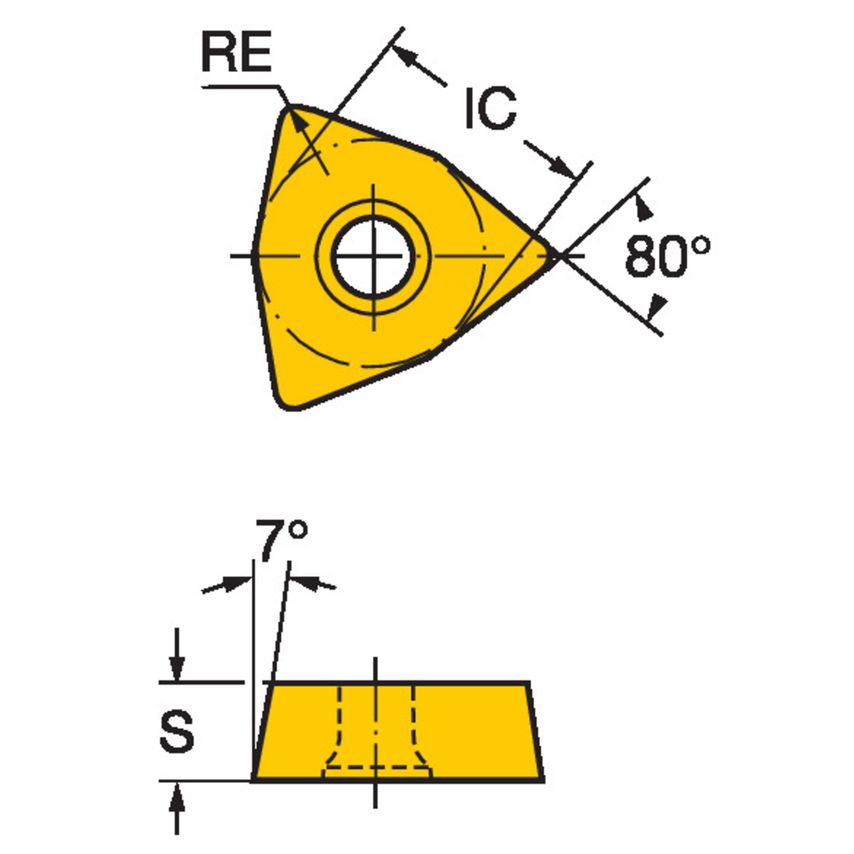

| Corner Radius | 0.8mm |
| Weight | 2.2g |
| Cutting Edge Count | 3 |
| Grade | 235 |
| Insert Shape | Trigon |
| Coating Process Type | CVD |
| Insert Rake Angle | 18\u00b0 |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Screw/Clamp |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Fixing Hole Diameter | 3.2mm |
| CoroPak | 91.3 |
| Insert Size/Shape | CoroDrill U WC0503xxP |
| Insert Thickness | 3.175mm |
| MFR Part No. | 5756111 |
| Coating Type | TiCN+TiN |
| Inscribed Circle Diameter | 7.94mm |
| Insert Size | 503 |
| Insert Usage Code | Peripheral |
