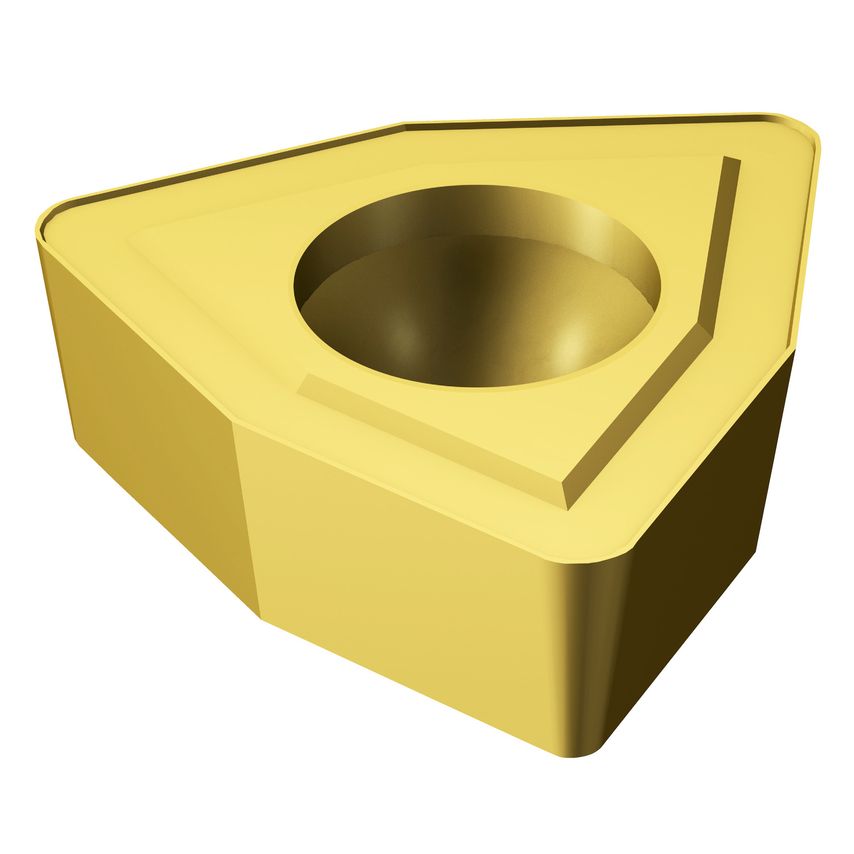

Product Range: Coromant U
| Unit Measured | Metric |
| Fixing Hole Diameter | 4.3mm |
| MFR Part No. | 5756236 |

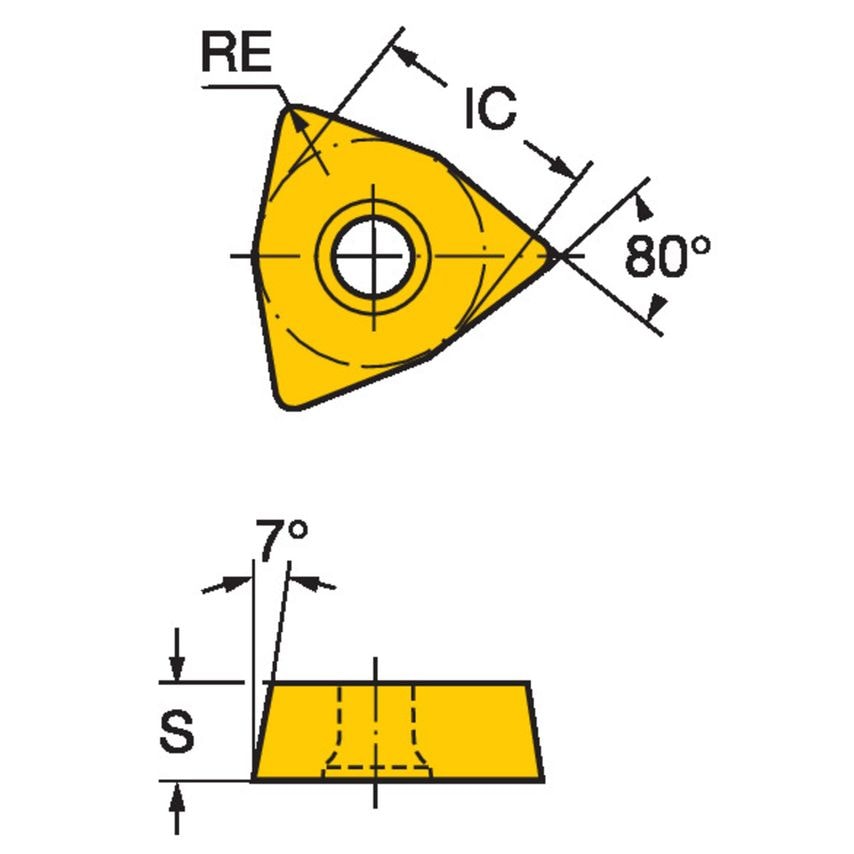

| Insert Shape | Trigon |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Insert Usage Code | Peripheral |
| Insert Thickness | 4.76mm |
| Corner Radius | 1.2mm |
| ISO Designation | WCMX 08 04 12 T-53 1020 |
| Inscribed Circle Diameter | 12.7mm |
| Insert Mounting Style | Screw/Clamp |
| Coating Type | TiN |
| CoroPak | 98.3 |
| Cutting Edge Count | 3 |
| Insert Rake Angle | 18\u00b0 |
| Grade | 1020 |
| Insert Size/Shape | CoroDrill U WC0804xx |
| Through Hole Function Property | Yes |
