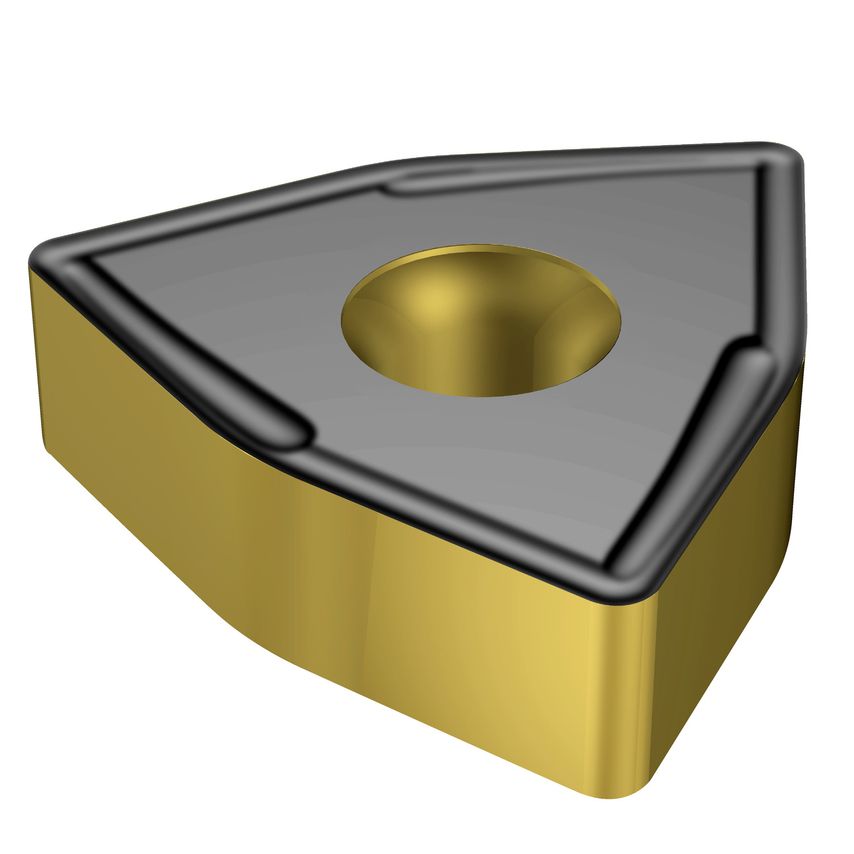

Insert for bar peeling
| Coating Process Type | CVD |
| Through Hole Function Property | Yes |
| Insert Size/Shape | WN1509 |
| Cutting Edge Count | 3 |
| Wiper Edge Length | 5.3mm |
| Grade | 4335 |
| Insert Mounting Style | Screw/Clamp |
| Unit Measured | Metric |
| Maximum Depth of Cut | 3mm |
| Fixing Hole Diameter | 7.93mm |
| Corner Radius | 11mm |
| Insert Size | WN1509 |
| Clearance Angle Major | 0\u00b0 |
| Coating Type | TiCN+Al2O3+TiN |
| Inscribed Circle Diameter | 22.23mm |
| CoroPak | 115 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7081049 |
| Hand Preference | Left |
| Insert Thickness | 9.53mm |
| Maximum Cutting Depth | 3mm |
| Insert Shape | Trigon |
