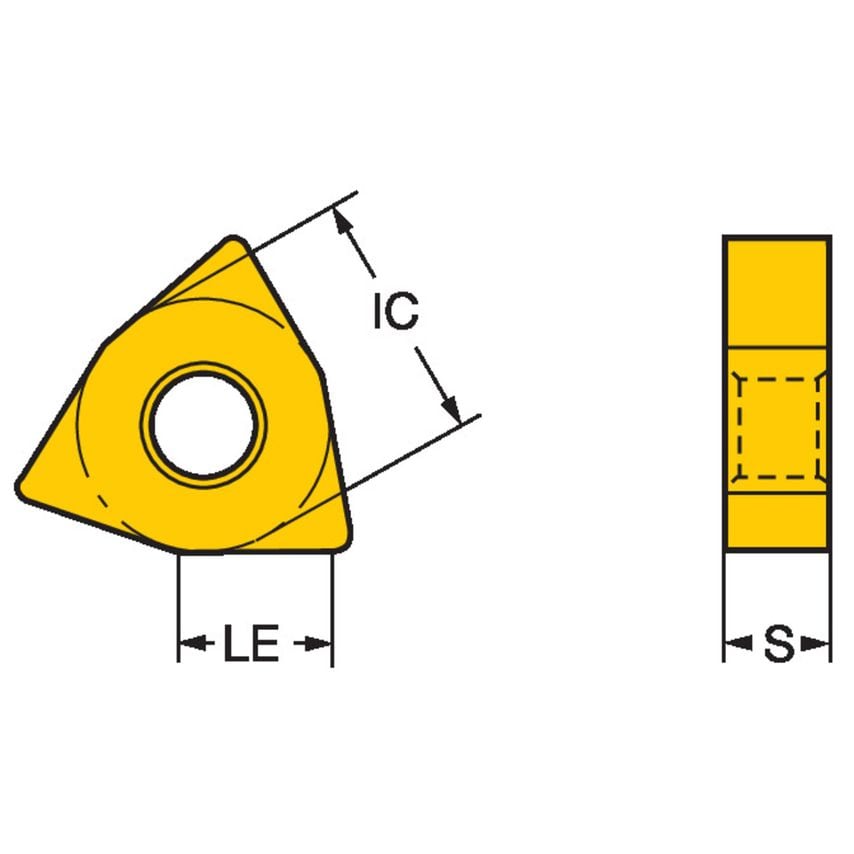

Insert for bar peeling
| Wiper Edge Length | 8mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Edge Count | 6 |
| Insert Shape | Trigon |
| Clearance Angle Major | 0\u00b0 |
| Hand Preference | Left |
| Insert Size/Shape | WN1106 |
| Maximum Cutting Depth | 2mm |
| Grade | 4425 |
| Through Hole Function Property | Yes |
| Insert Style | TNMX |
| Thickness | 6.35mm |
| Fixing Hole Diameter | 6.33mm |
| Insert Size | WN1106 |
| Coating Process Type | CVD |
| Manufacturer Grade | 4425 |
| Inscribed Circle Diameter | 15.88mm |
| Insert Mounting Style | Screw/Clamp |
| Corner Radius | 5mm |
| CoroPak | 21.2 |
| Unit Measured | Metric |
| Product Type | Inserts |
| Weight | 20.3g |
| Shape | Trigon |
| Maximum Depth of Cut | 2mm |
| MFR Part No. | 8019694 |
| Insert Thickness | 6.35mm |
| Coating Type | TiCN+Al2O3+TiN |
