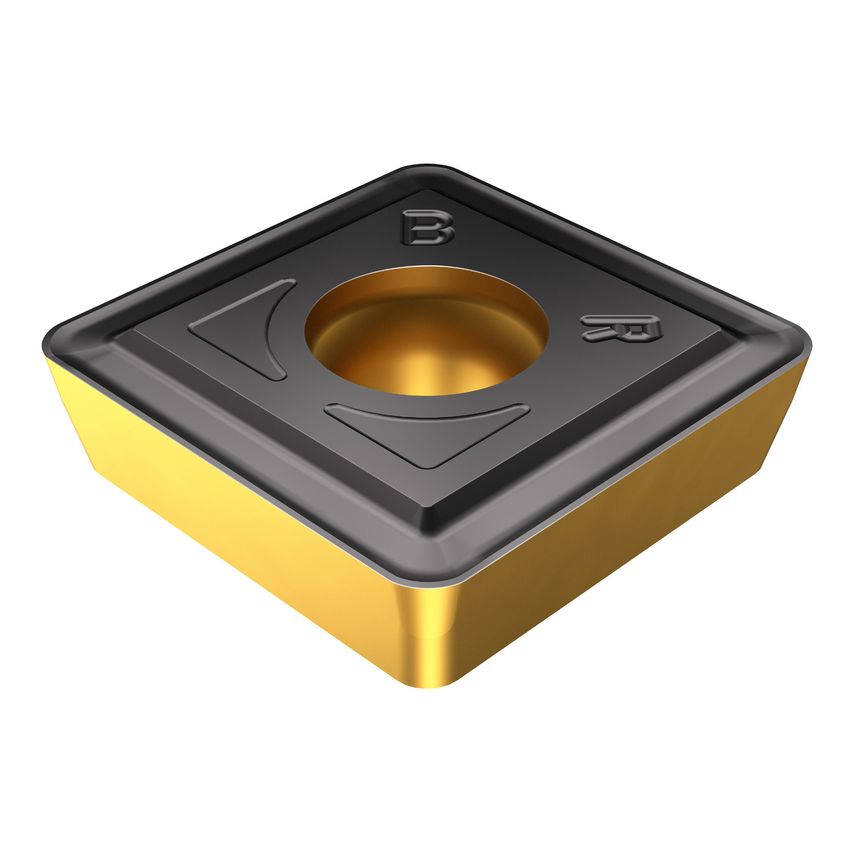

CoroBore 111 - Insert for boring
| Hand Preference | Neutral |
| Insert Size/Shape | CoroBore SP08 |
| Through Hole Function Property | Yes |
| CoroPak | 20.2 |
| Inscribed Circle Diameter | 8.9mm |
| Face Land Width | 0.1mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Mounting Style | Screw/Clamp |
| MFR Part No. | 7860968 |
| Weight | 2.4g |
| ISO Designation | P |
| Manufacturer Grade | 4425 |
| Coating Process Type | CVD |
| Fixing Hole Diameter | 3.2mm |
| Insert Thickness | 3mm |
| Corner Radius | 0.8mm |
| Insert Shape | Square |
| Grade | 4425 |
| Face Land Angle | 5\u00b0 |
| Thickness | 3mm |
| Insert Rake Angle | 10\u00b0 |
| Shape | Square |
| Insert Style | SPMT |
| Unit Measured | Metric |
| Coating Type | TiCN+Al2O3+TiN |
| Cutting Edge Count | 4 |
| Insert Size | CoroBore SP08 |
| Chipbreaker | BR |
| Clearance Angle Major | 11\u00b0 |
