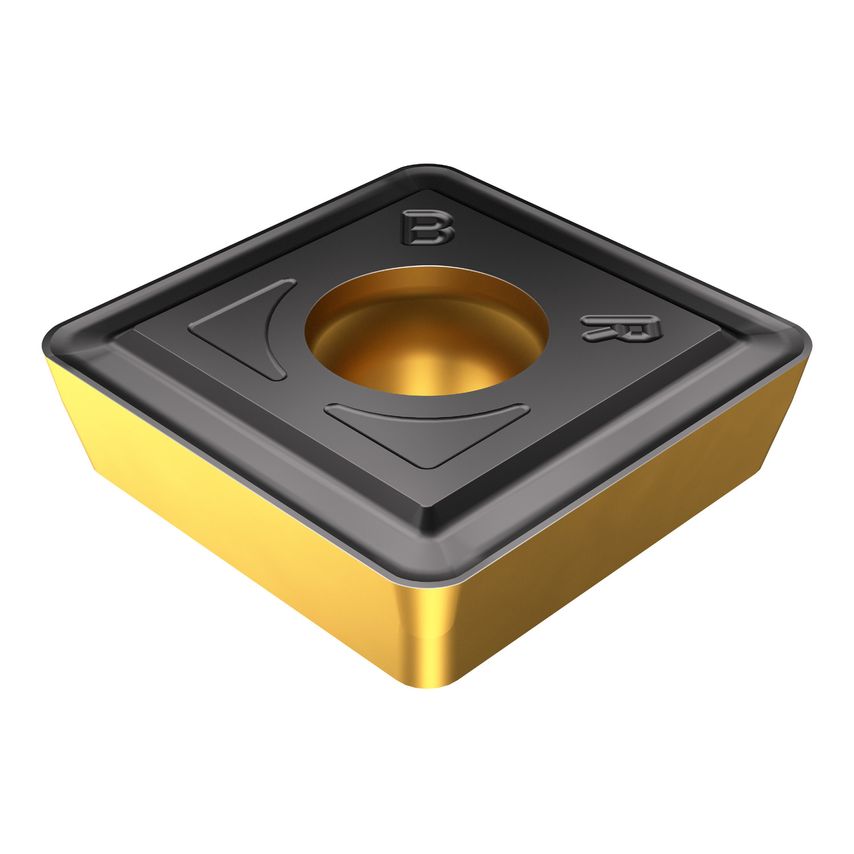

CoroBore 111 - Insert for boring
| Hand Preference | Neutral |
| Insert Size/Shape | CoroBore SP18 |
| Coating Process Type | CVD |
| Through Hole Function Property | Yes |
| MFR Part No. | 7860970 |
| Face Land Angle | 5\u00b0 |
| Corner Radius | 1.2mm |
| Chipbreaker | BR |
| Insert Style | SPMT |
| Insert Shape | Square |
| Manufacturer Grade | 4425 |
| Insert Rake Angle | 12\u00b0 |
| Thickness | 5.5mm |
| Face Land Width | 0.15mm |
| Clearance Angle Major | 11\u00b0 |
| Inscribed Circle Diameter | 18.6mm |
| Cutting Edge Count | 4 |
| Insert Thickness | 5.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Shape | Square |
| Fixing Hole Diameter | 4.7mm |
| Insert Mounting Style | Screw/Clamp |
| Unit Measured | Metric |
| Insert Size | CoroBore SP18 |
| Coating Type | TiCN+Al2O3+TiN |
| CoroPak | 20.2 |
| Grade | 4425 |
| Weight | 24g |
| ISO Designation | P |
