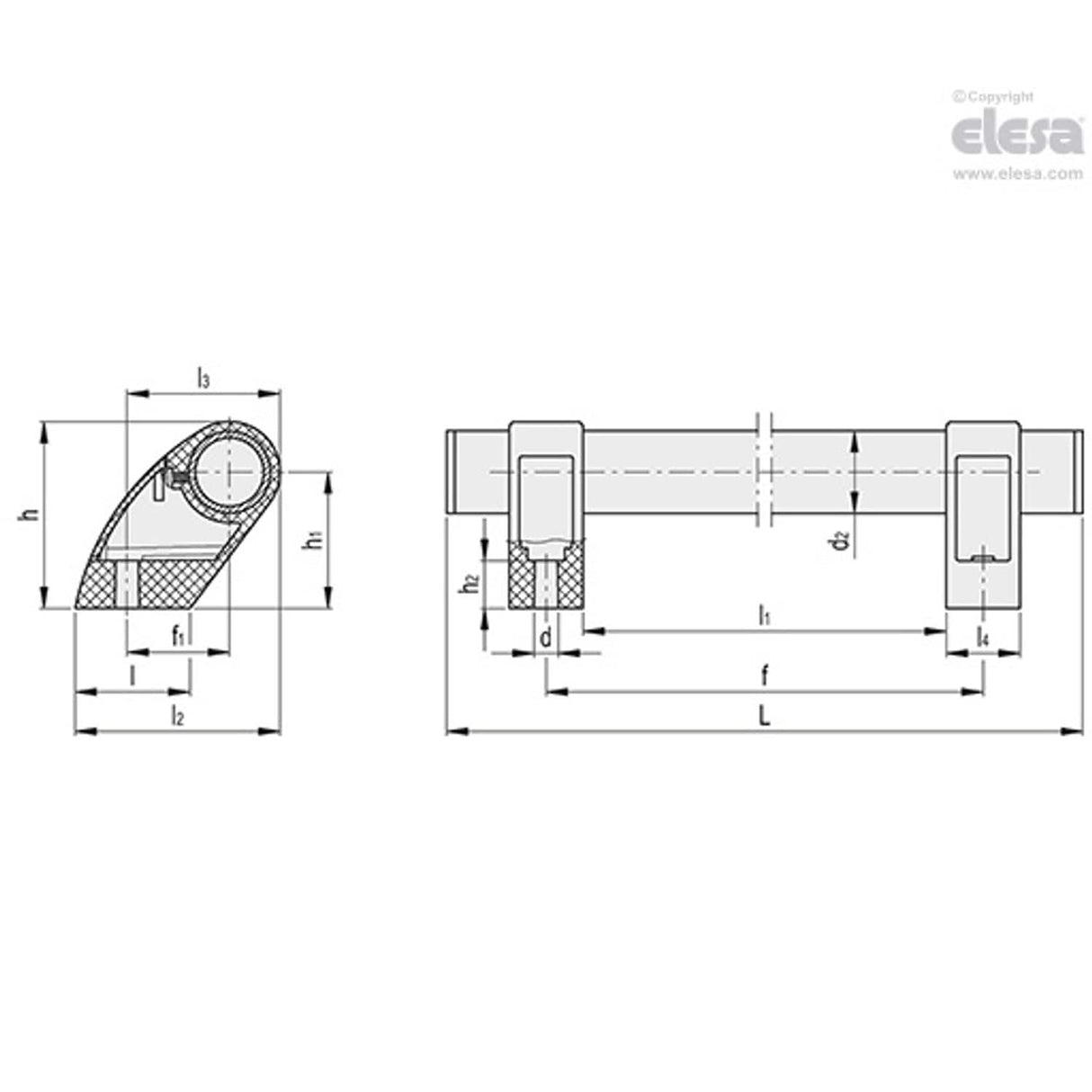

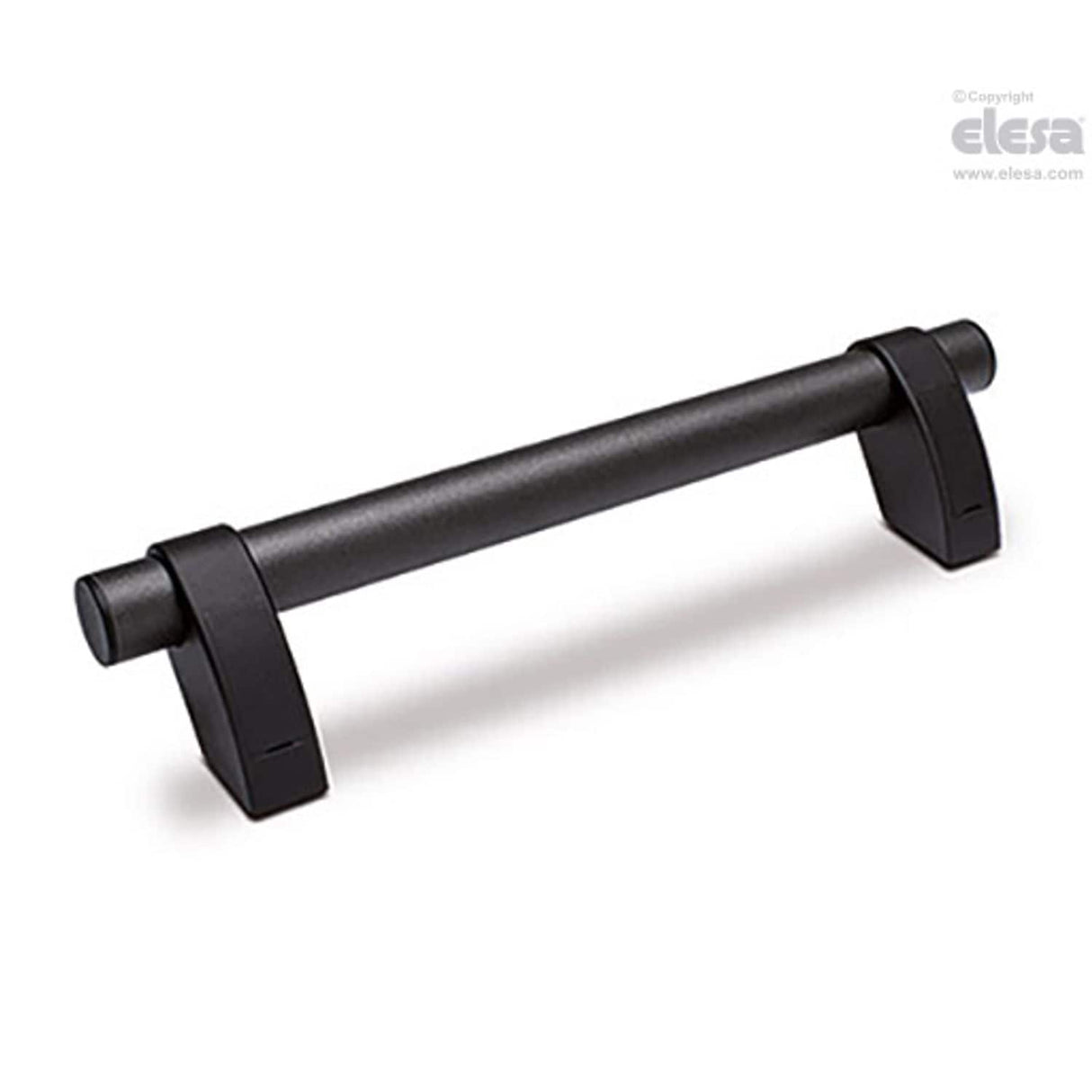

M.1053-P Adjustable handles shanks, Movable handle shanks, technopolymer and aluminium, Aluminium tube with epoxy resin coating, handle shanks in black colour For product drawing and dimensions refer to pdf Item data sheet.
| l | 42 |
| MFR Part No. | M.1053 P/30-595-EP |
| l2 | 75 |
| l3 | 56 |
| f1 | 37.5 |
| F1 | 1100N |
| l1 max. | 568 |
| d | 8.5 |
| l4 | 27 |
| d2 | 30 |
| h | 68.5 |
| F2 | 1200N |
| F2# | 1800N |
| F1# | 1900N |
| L | 624 |
| h1 | 50 |
| h2 | 17.5 |
| Weight | 336g |
