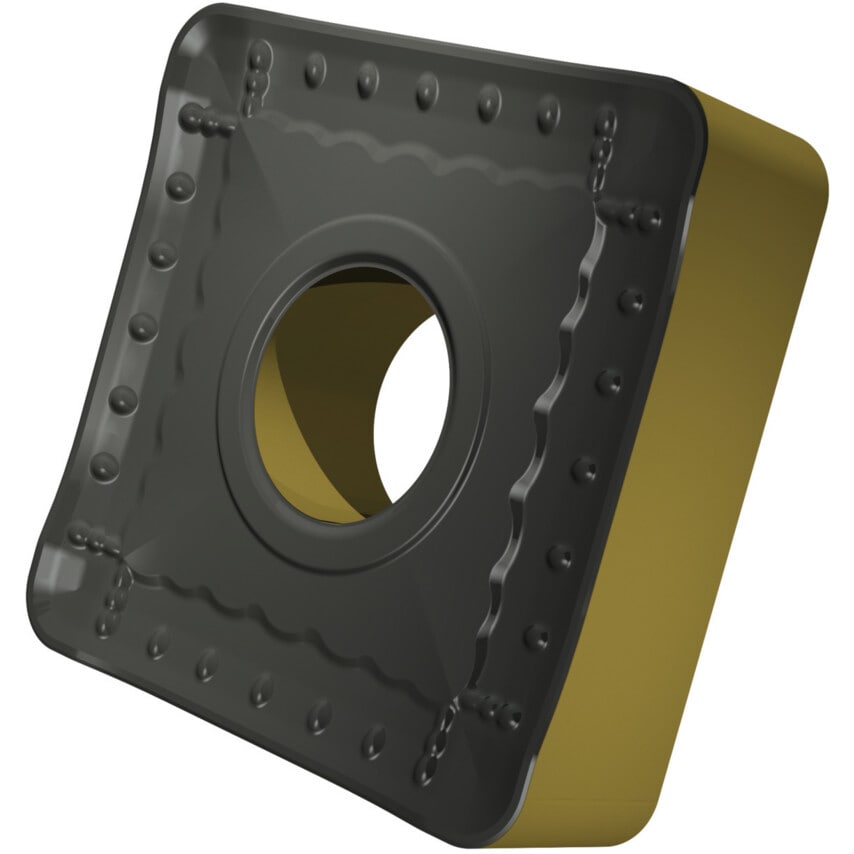

These double-sided square SNMM turning inserts have a negative insert geometry and were designed for the medium to extra heavy machining of steels. The inscribed circle has a diameter of 25.4mm, 9.52mm thickness, and 2.4mm nose radius.
Features and Benefits
Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Processed post-treatment to improve the toughness and reliability of cutting-edge
Typical Applications
Steel
Cast steel
| Cutting Edge Length | 25.4mm |
| Finish/Coating | MT-CVD |
| Thickness | 9.53mm |
| MFR Part No. | 8345590 |
| Insert Style | SNMM |
| Shape | Square |
| ISO Designation | SNMM 250924E-OR |
| ISO Category Grade | P |
| Material Application | Cast Iron | Cast Steel | Steels |
| Chipbreaker | OR |
| Corner Radius | 2.4 |
| ISO Cut | P05 - P30 |
| Inscribed Circle | 25.4mm |
| Material | Carbide |
| ISO Category | P |
