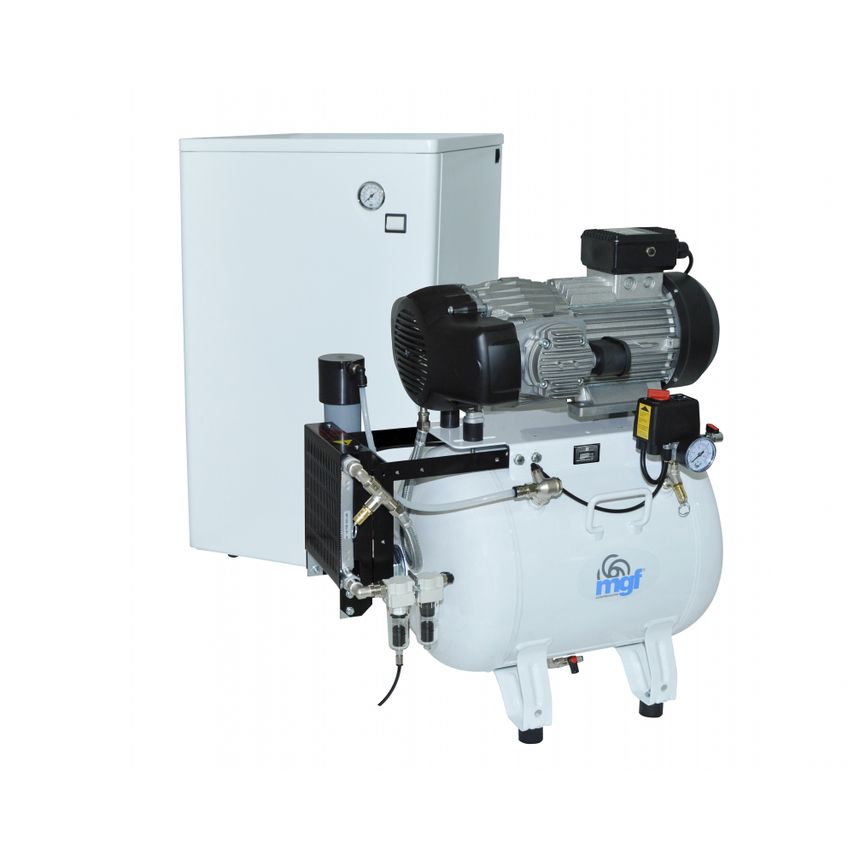

CS 30/15 Prime M Dental Compressor, 3 Chairs, 150 L/Min 5Bar, 53 dB (A) In Silent Cabinet

CS 30/15 PRIME M CABINET SILENCED WITH DRYER Code: M-PR-CS200-040-M Model: CS 30/15 Prime M Cabinet Silenced With Dryer Weight: 98 kg HIGHLIGHTS: In Acoustic Cabinet, with Dryer 1.5 kW - 152 l/min @ 5 Bar Internally Coated Receiver - 40 Lt Using PRIME technology: 70% duty, 53 dB (A) , and low temperature output (for continuous requirement 60 l/min @ 7 Bar, for higher requirement look at the X-line range) Maximum Pressure 10 Bar ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace Suitable for laboratory and other applications where oil free and air quality is important Integrated membrane dryer guaranteeing a dew point of -20C at 5 Bar for HTM 2022 Compliance Double filtration system providing an air purity of 0.01 microns Service Kits and Spare Parts DESCRIPTION MGF Prime 1200 pump Open Frame and Silenced Models The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. The silenced version, housed in a modern acoustic cabinet, can achieve noise levels as low as 53 dB (A) . All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (8 Bar) for general use applications. Air Treatment Features Aftercooler - reduce air temperature Dual filtration system - to 0, 01 microns Membrane dryer - guarantees an average dewpoint of up to -20C PDP at 5 bar Maintenance free - simple design Efficient - only requires the replacement of the pre filter elements SPECIFICATION Chairs 3 c.f.m @5Bar 5.4 L/min @5Bar 152 Hp 2 kW 1.5 Bar 10 Psi 145 dB (A) 53 Volt 230 Receiver Size 40Lt Product L x W x H (mm) 490 x 720 x 890 Kg 98

Weight	98kg
Power	1.5kg/mm
Maximum Pressure	10bar
