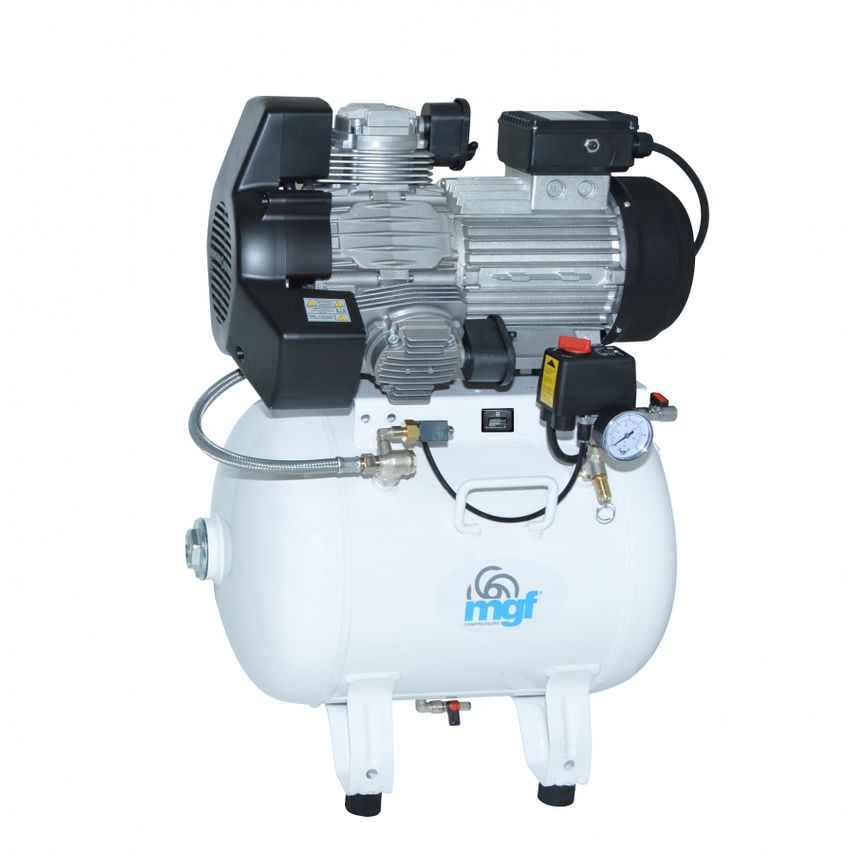

50/25 Prime S 250 L/Min 5Bar, 66 dB (A)

50/25 PRIME S Code: M-PR-OF300-040 Model: 50/25 Prime S Weight: 54 kg HIGHLIGHTS: Open-Frame 2.2 kW - 250 l/min @ 5 Bar Internally Coated Receiver - 40 Lt Maximum Pressure 10 Bar Using PRIME technology: 70% duty, 66 dB (A) , and low temperature output (for continuous requirement 95 l/min @ 7 Bar) Suitable for laboratory and other applications where oil free and air quality is important Service Kits and Spare Parts OPTIONAL: Cabinet version from 53 dB (A) OPTIONAL: Integrated membrane dryer options guaranteeing a dew point of -20C at 5 Bar for HTM 2022 Compliance OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer Open Frame and Silenced Models The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (8 Bar) for general use applications. SPECIFICATION Chairs 4 c.f.m @5Bar 8.8 L/min @5Bar 250 Hp 3 kW 2.2 Bar 10 Psi 145 dB (A) 66 Volt 230 Receiver Size 40Lt Product L x W x H (mm) 600 x 410 x 810 Kg 54

Maximum Pressure	10bar
Weight	54kg
Power	2.2kg/mm
