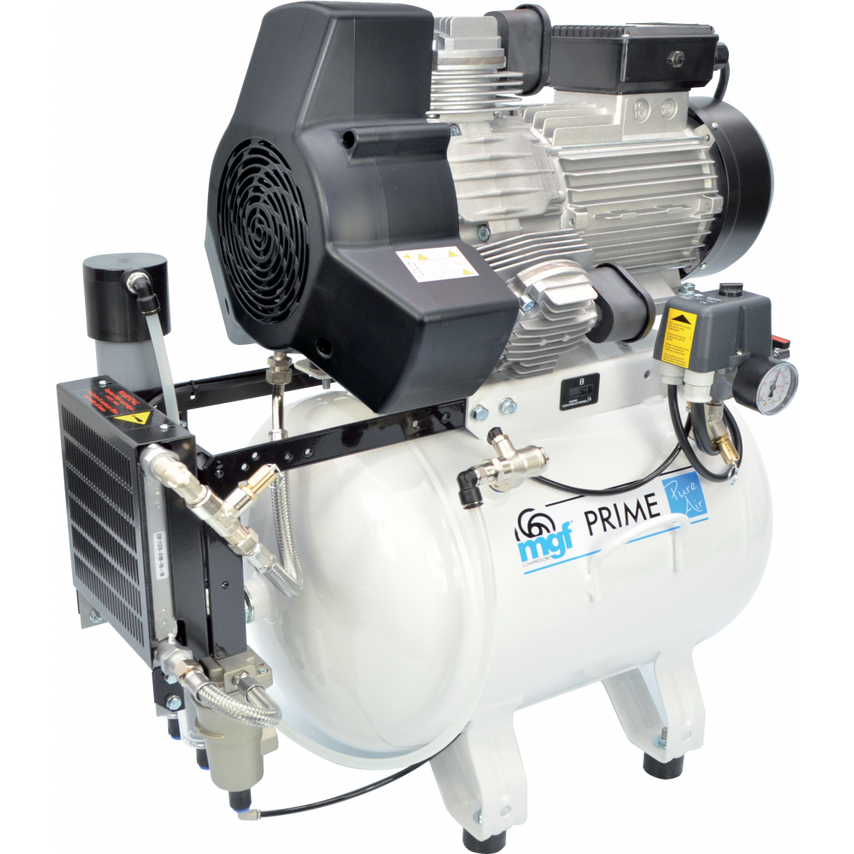

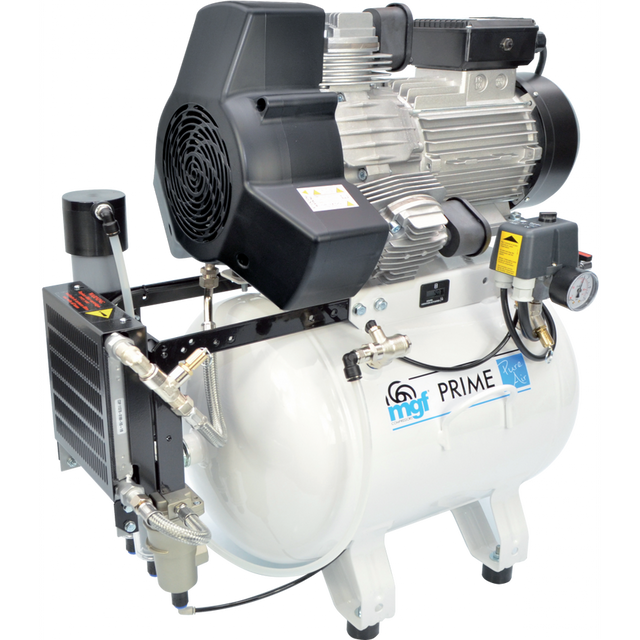

50/25 Prime M Dental Comprssor 4-5 Chairs, 250 L/Min 5Bar, 66 dB (A) with Dryer

50/25 PRIME M & DRYER Code: M-PR-OF300-040-M Model: 50/25 Prime M & Dryer Weight: 58 kg HIGHLIGHTS: Open-Frame 2.2 kW - 225 l/min @ 5 Bar Internally Coated Receiver - 40 Lt Using PRIME technology: 70% duty, 65 dB (A) , and low temperature output (for continuous requirement 90 l/min @ 7 Bar, for higher requirement look at the X-line range) Maximum Pressure 10 Bar ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace Suitable for laboratory and other applications where oil free and air quality is important Integrated membrane dryer guaranteeing a dew point of -20C at 5 Bar for HTM 2022 Compliance Service Kits and Spare Parts OPTIONAL: with Dessicant Dryer -40 dew point (ISO 8573 1.2.1) OPTIONAL: Cabinet version from 50 dB (A) OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer DESCRIPTION Open Frame and Silenced Models The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar Air Treatment Features Aftercooler - reduce air temperature Dual filtration system - to 0, 01 microns Membrane dryer - guarantees an average dewpoint of up to -20C PDP at 5 bar Maintenance free - simple design Efficient - only requires the replacement of the pre filter elements SPECIFICATION Chairs 4 c.f.m @5Bar 7.9 L/min @5Bar 225 Hp 3 kW 2.2 Bar 10 Psi 145 dB (A) 66 Volt 230 Receiver Size 40Lt Product L x W x H (mm) 710 x 410 x 810 Kg 58

Receiver Size	40L
Power	2.2kg/mm
Weight	58kg
Maximum Pressure	10bar
