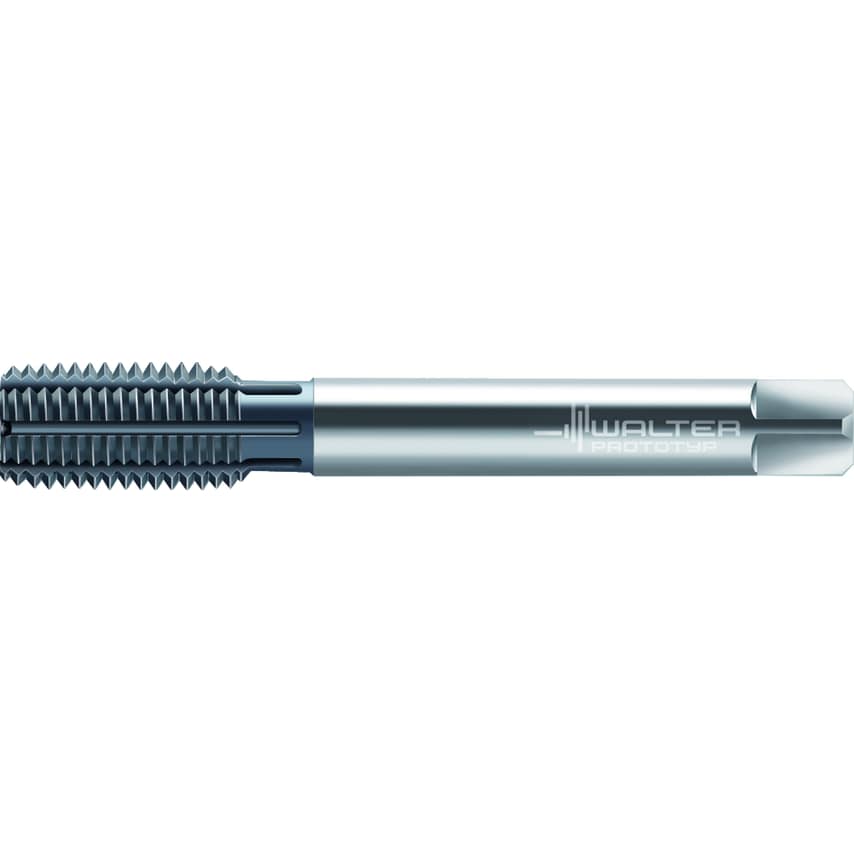

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole MF 16x1.5
| Usable Length | 58mm |
| Thread Pitch | 1.5mm |
| Thread Size | MF 16x1.5 |
| Driving Square Length | 12mm |
| MFR Part No. | 7958129 |
| Tool Designation | TC430-M16X1.5-L2-WW60EL |
| Clamping Width | 9mm |
| Number of Grooves | 8 |
| Connection Diameter | 12mm |
| Cutting Edge Length | 15mm |
| Functional Length | 100mm |
