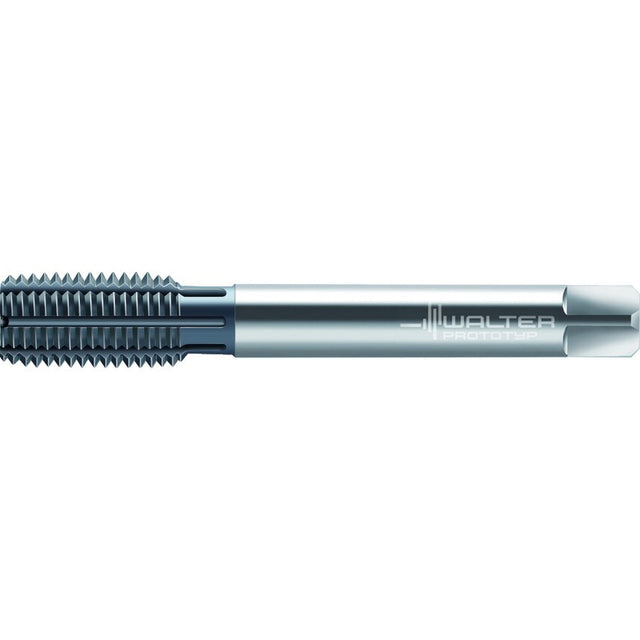

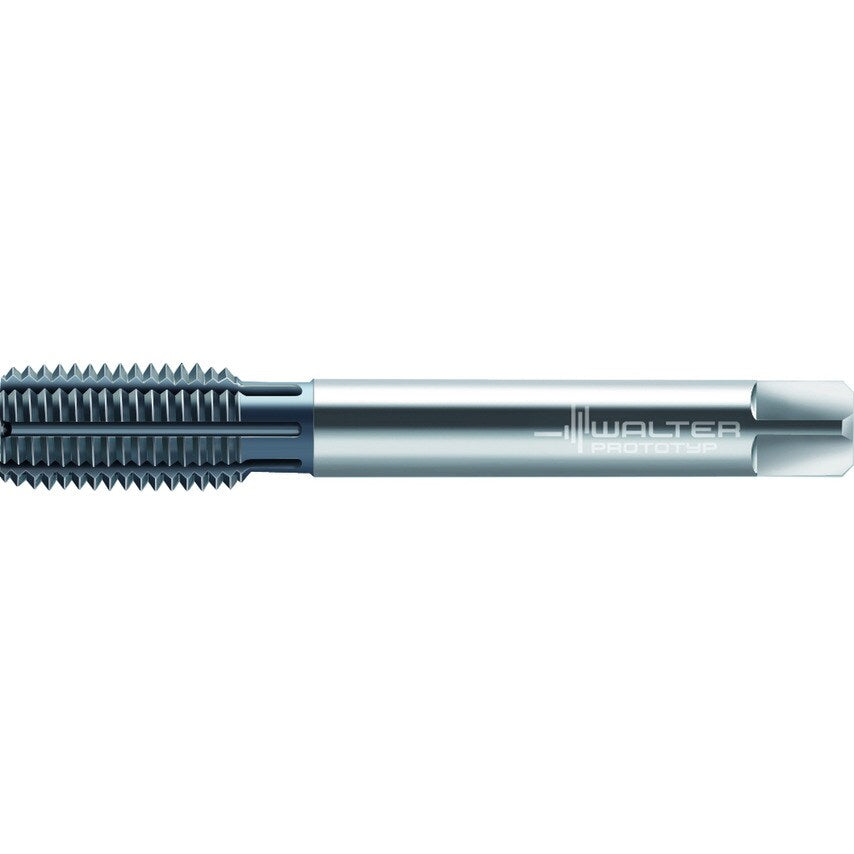

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole MF 12x1
| Cutting Edge Length | 13mm |
| Number of Grooves | 8 |
| Tool Designation | TC430-M12X1-L2-WW60EL |
| Driving Square Length | 10mm |
| Clamping Width | 7mm |
| MFR Part No. | 7958125 |
| Thread Pitch | 1mm |
| Functional Length | 100mm |
| Usable Length | 73mm |
| Connection Diameter | 9mm |
| Thread Size | MF 12x1 |
