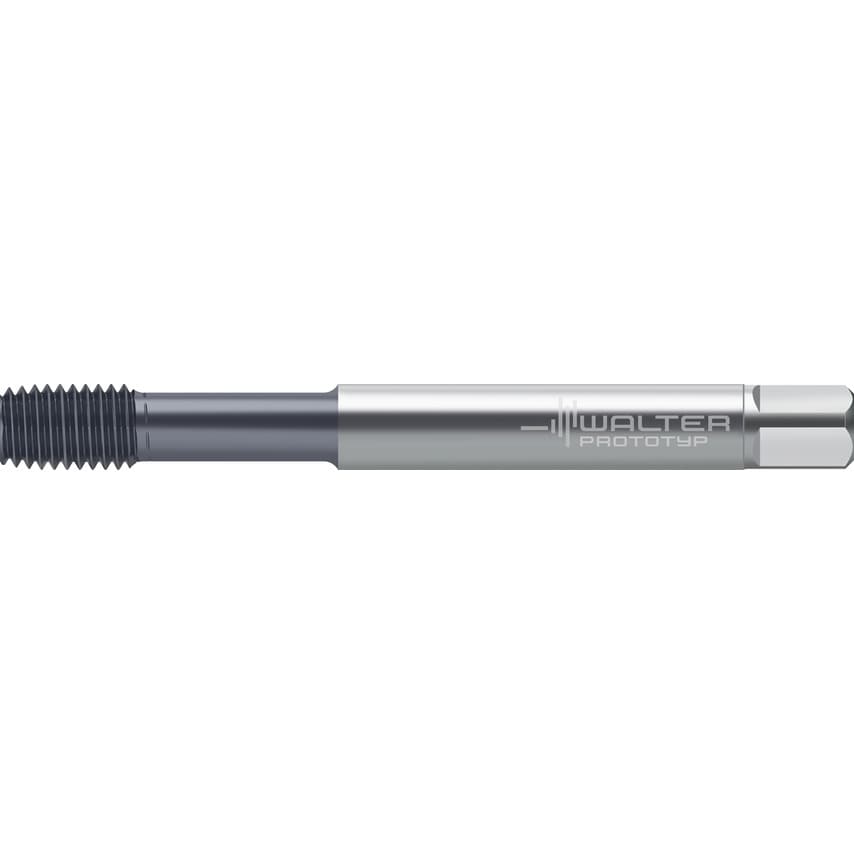

Solid carbide machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole WG20EL Suitable for through hole M 10 P=0.0591in
| Thread Size | M 10 |
| Usable Length | 39mm |
| Tool Designation | TC470-M10-C0-WG20EL |
| Thread Pitch | 1.5mm |
| Functional Length | 100mm |
| Number of Flutes | 7 |
| Cutting Edge Length | 15mm |
| Clamping Width | 8mm |
| MFR Part No. | 7726105 |
| Connection Diameter | 10mm |
| Driving Square Length | 11mm |
