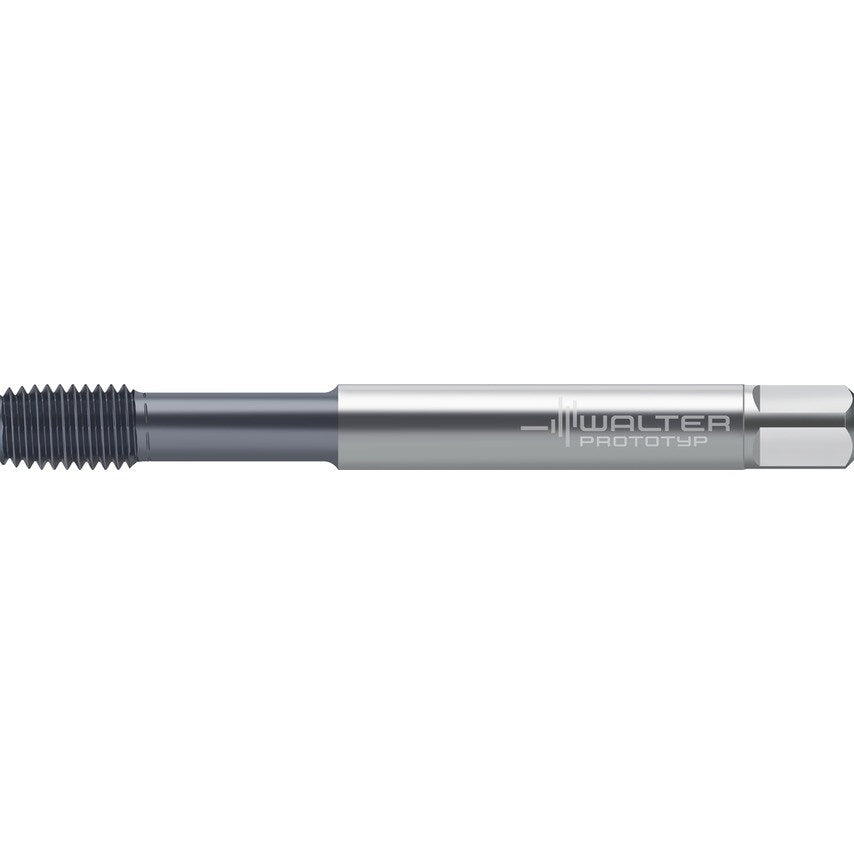

Solid carbide machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole WG20EL Suitable for through hole M 5 P=0.0315in
| Driving Square Length | 8mm |
| Tool Designation | TC470-M5-C0-WG20EL |
| Number of Flutes | 5 |
| Clamping Width | 4.9mm |
| Thread Size | M 5 |
| Functional Length | 70mm |
| Thread Pitch | 0.8mm |
| Connection Diameter | 6mm |
| Usable Length | 16mm |
| MFR Part No. | 7726102 |
| Cutting Edge Length | 16mm |
