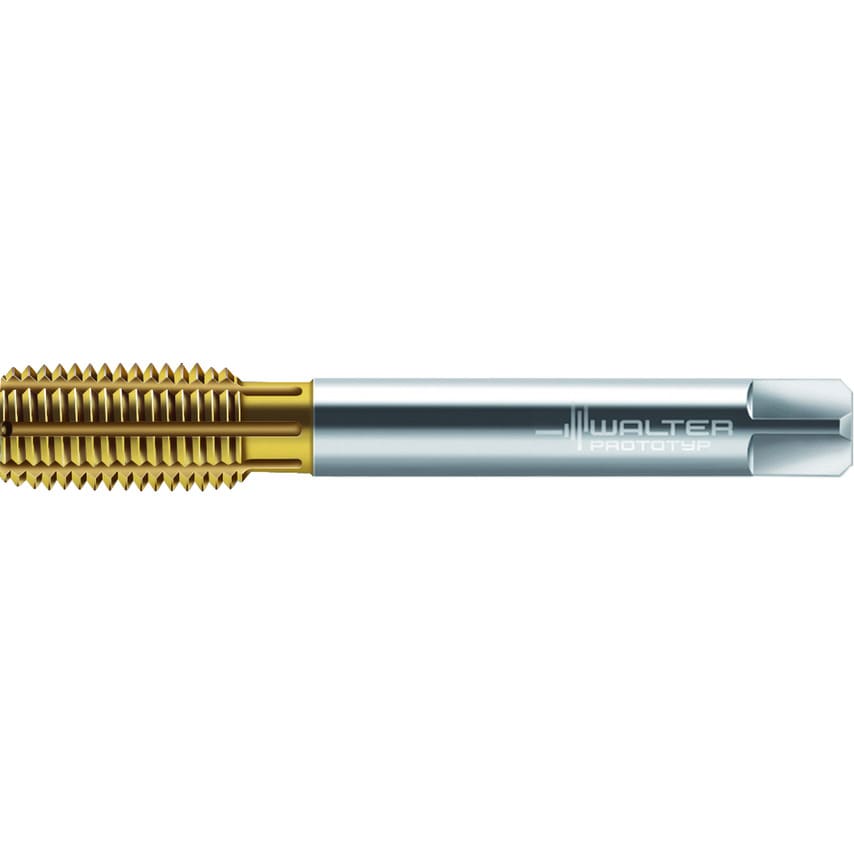

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) xD M/6HX DIN 2174 Suitable for blind hole WW60AD Suitable for through hole M 24 P=0.1181in
| Functional Length | 160mm |
| Usable Length | 113mm |
| Thread Size | M 24 |
| Number of Grooves | 8 |
| MFR Part No. | 7958102 |
| Connection Diameter | 18mm |
| Clamping Width | 14.5mm |
| Driving Square Length | 17mm |
| Thread Pitch | 3mm |
| Cutting Edge Length | 30mm |
| Tool Designation | TC420-M24-L2-WW60AD |
