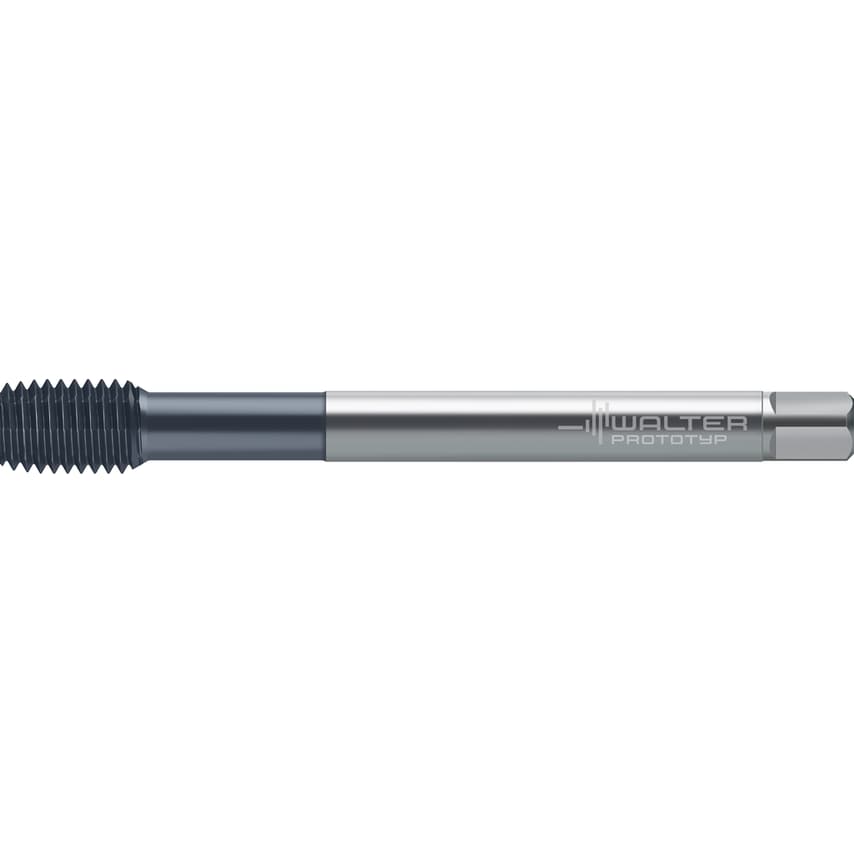

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole M 12
| Thread Size | M 12 |
| Connection Diameter | 9mm |
| Number of Grooves | 8 |
| Cutting Edge Length | 16mm |
| Usable Length | 83mm |
| Functional Length | 110mm |
| MFR Part No. | 7958114 |
| Tool Designation | TC430-M12-L1-WW60EL |
| Driving Square Length | 10mm |
| Clamping Width | 7mm |
| Thread Pitch | 1.75mm |
