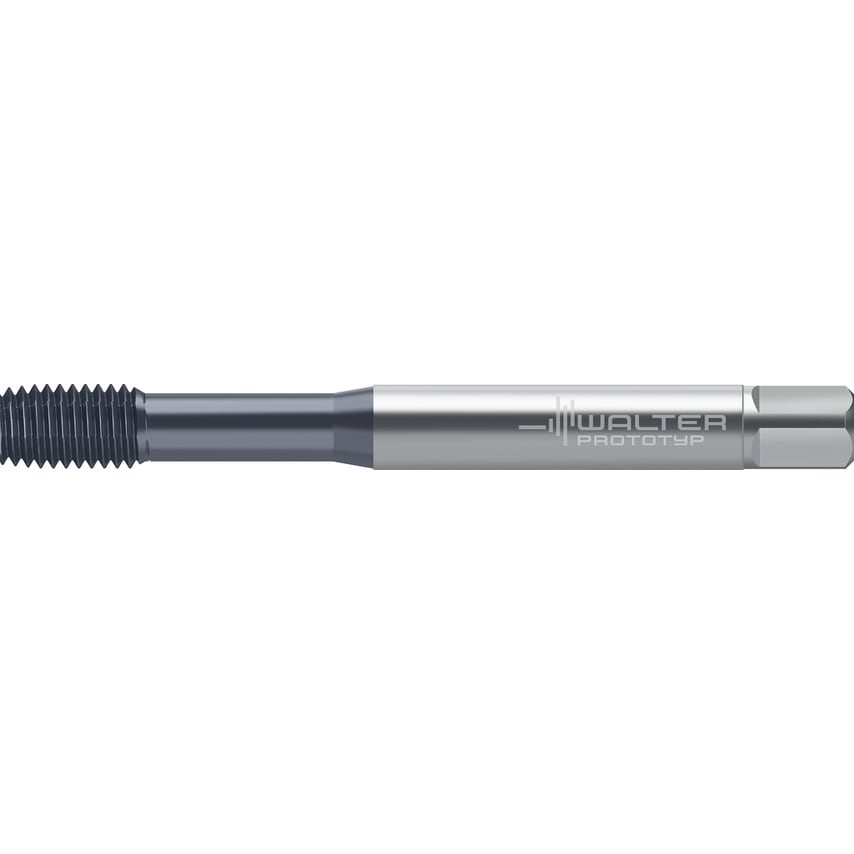

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole M 8
| MFR Part No. | 7958112 |
| Functional Length | 90mm |
| Driving Square Length | 9mm |
| Thread Size | M 8 |
| Connection Diameter | 8mm |
| Thread Pitch | 1.25mm |
| Clamping Width | 6.2mm |
| Cutting Edge Length | 12mm |
| Number of Grooves | 6 |
| Tool Designation | TC430-M8-C1-WW60EL |
| Usable Length | 35mm |
