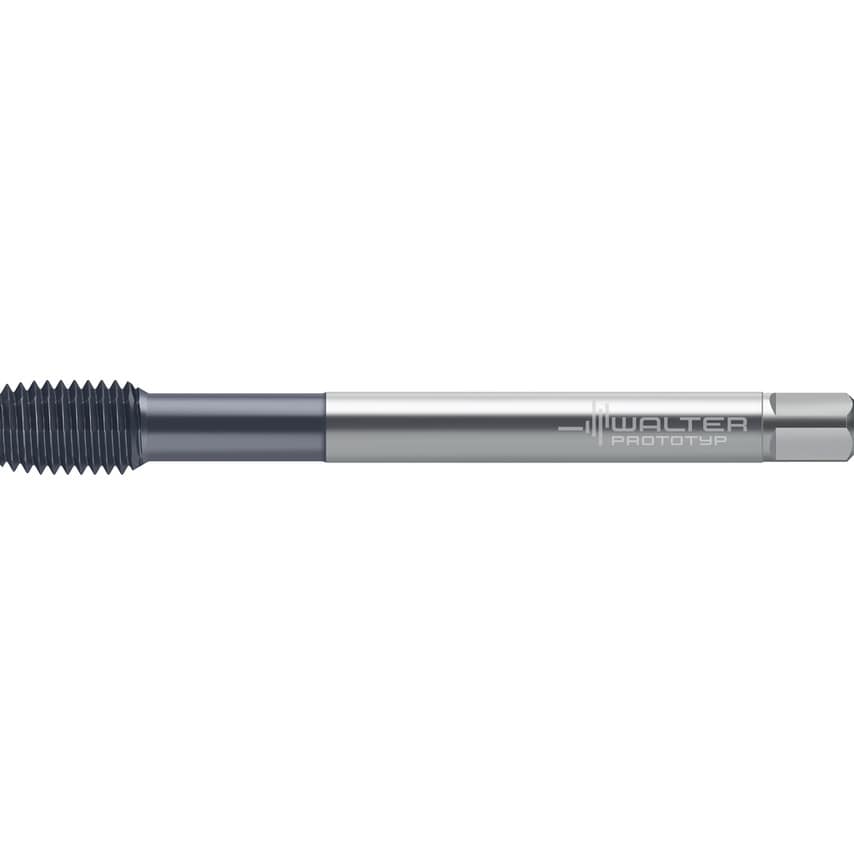

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole M 16
| Thread Size | M 16 |
| Cutting Edge Length | 20mm |
| Thread Pitch | 2mm |
| Connection Diameter | 12mm |
| Clamping Width | 9mm |
| Tool Designation | TC430-M16-L1-WW60EL |
| MFR Part No. | 7958115 |
| Usable Length | 68mm |
| Functional Length | 110mm |
| Number of Grooves | 8 |
| Driving Square Length | 12mm |
