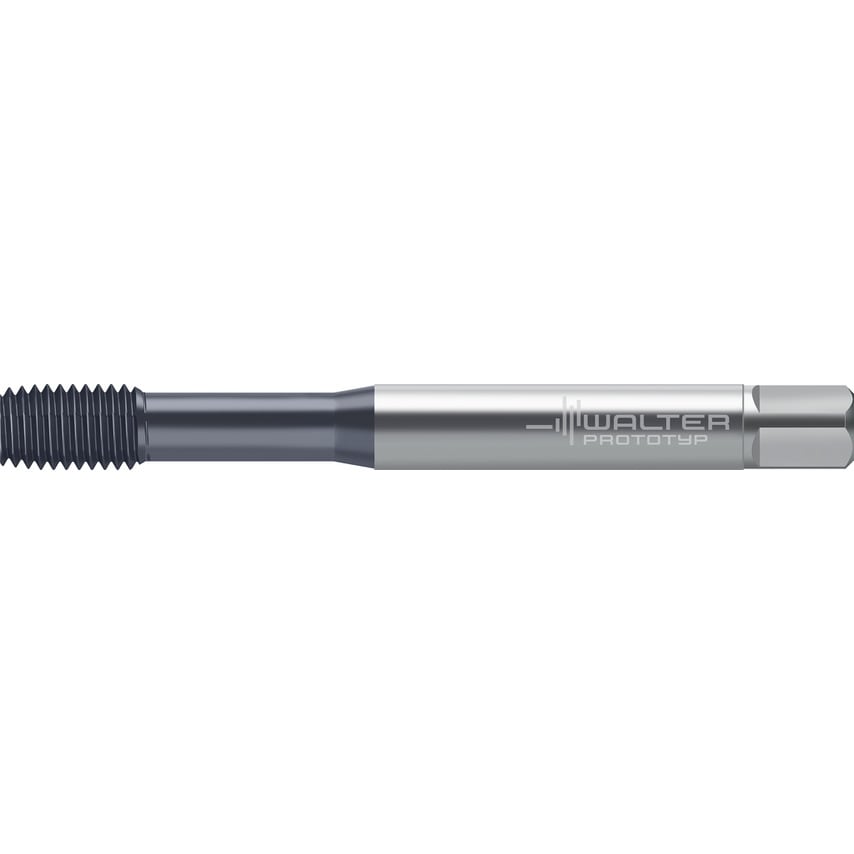

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) xD M/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole M 5 P=0.0315in
| Connection Diameter | 6mm |
| Driving Square Length | 8mm |
| Thread Pitch | 0.8mm |
| Cutting Edge Length | 8mm |
| MFR Part No. | 7958106 |
| Tool Designation | TC430-M5-C0-WW60EL |
| Thread Size | M 5 |
| Clamping Width | 4.9mm |
| Number of Grooves | 5 |
| Usable Length | 25mm |
| Functional Length | 70mm |
