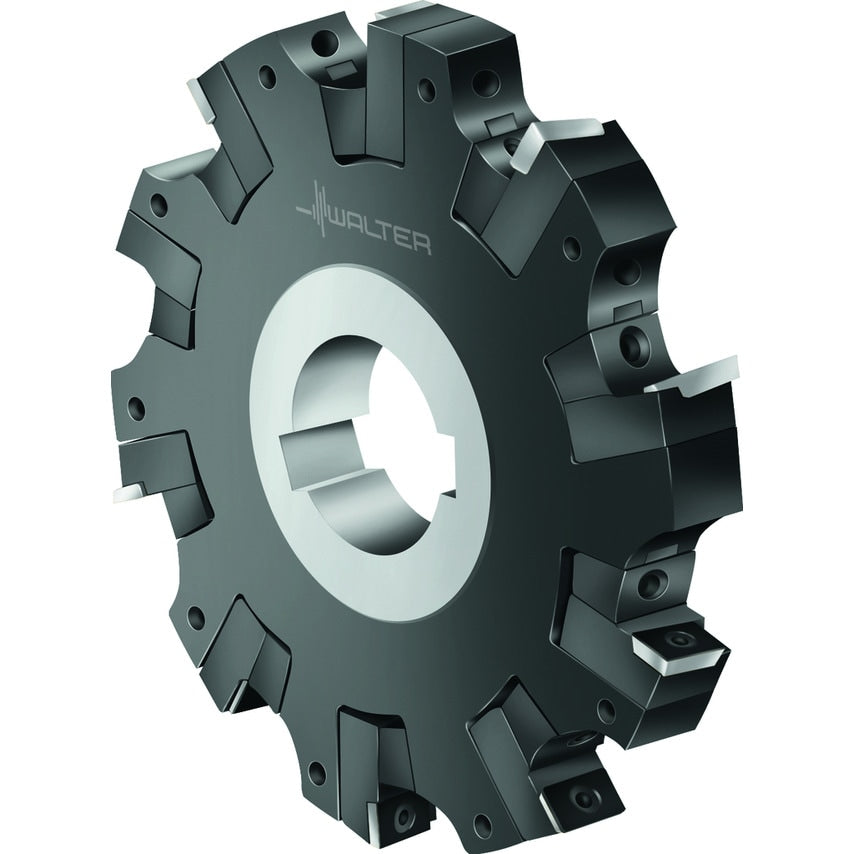

Slotting cutters for slot milling Parallel bore DIN 138 longitudinal keyway metric MP .. 0603 .. Dc=6.2992in SB=0.3543-0.3937in
| Tool Designation | F2252.B.160.Z06.09.S684 |
| Cutting Edge Diameter | 160mm |
| Number of Indexable Inserts | 12 |
| Maximum Projection Length | 9mm |
| Hub Thickness | 9mm |
| Hub Diameter | 65mm |
| Number Of Teeth | 6 |
| MFR Part No. | 5000686 |
| Connection Diameter | 40mm |
| Minimum Milling Width | 9mm |
| Maximum Milling Width | 10mm |
