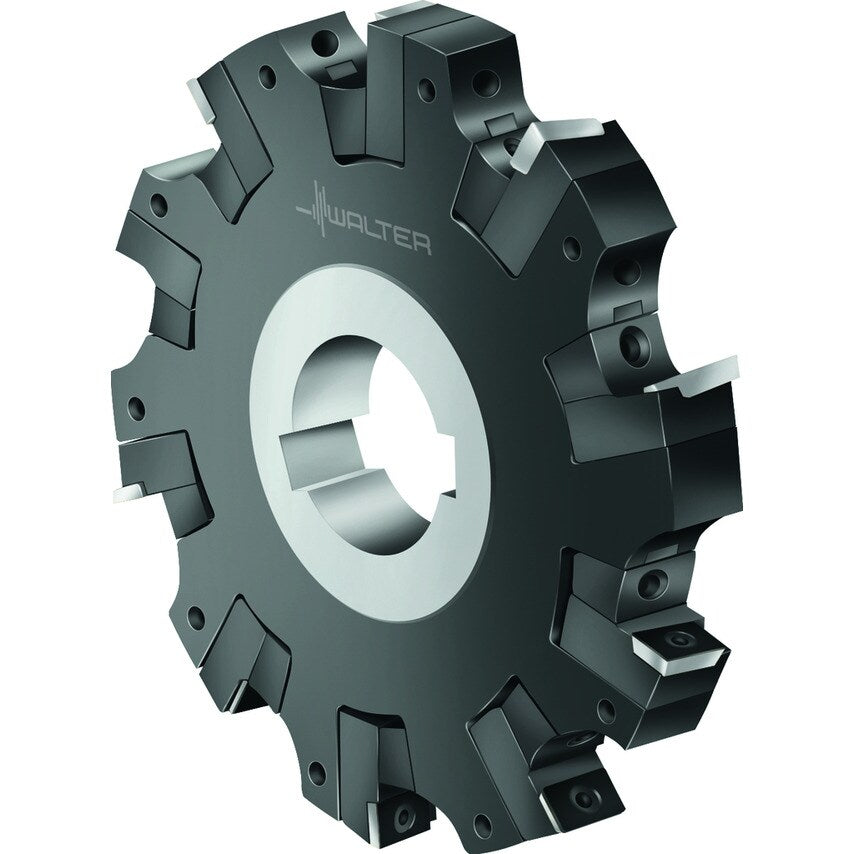

Slotting cutters for slot milling Parallel bore DIN 138 longitudinal keyway metric MP .. 0803 .. Dc=6.2992in SB=0.4724-0.5512in
| Minimum Milling Width | 12mm |
| Number Of Teeth | 6 |
| Tool Designation | F2252.B.160.Z06.12.S685 |
| Hub Diameter | 65mm |
| Maximum Projection Length | 12mm |
| Cutting Edge Diameter | 160mm |
| Maximum Milling Width | 14mm |
| MFR Part No. | 5000694 |
| Hub Thickness | 12mm |
| Connection Diameter | 40mm |
| Number of Indexable Inserts | 12 |
