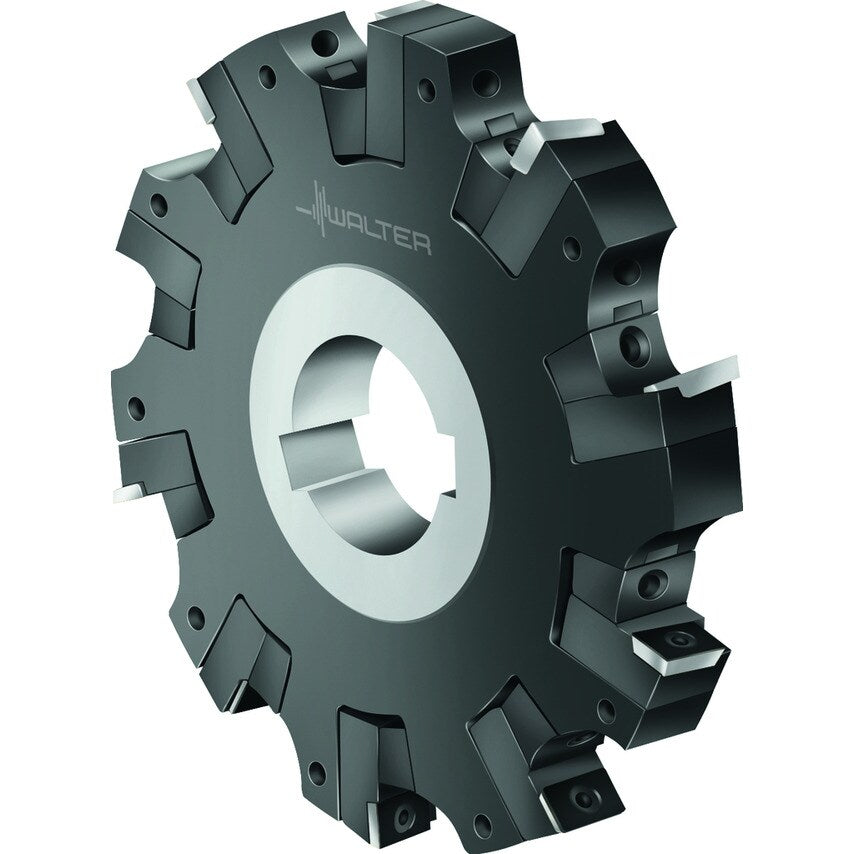

Slotting cutters for slot milling Parallel bore DIN 138 longitudinal keyway metric MP .. 1204 .. Dc=4.9213in SB=0.748-0.8661in
| Maximum Projection Length | 19mm |
| MFR Part No. | 5000697 |
| Hub Diameter | 65mm |
| Number of Indexable Inserts | 8 |
| Maximum Milling Width | 22mm |
| Minimum Milling Width | 19mm |
| Hub Thickness | 19mm |
| Connection Diameter | 40mm |
| Tool Designation | F2252.B.125.Z04.19.S686 |
| Cutting Edge Diameter | 125mm |
| Number Of Teeth | 4 |
