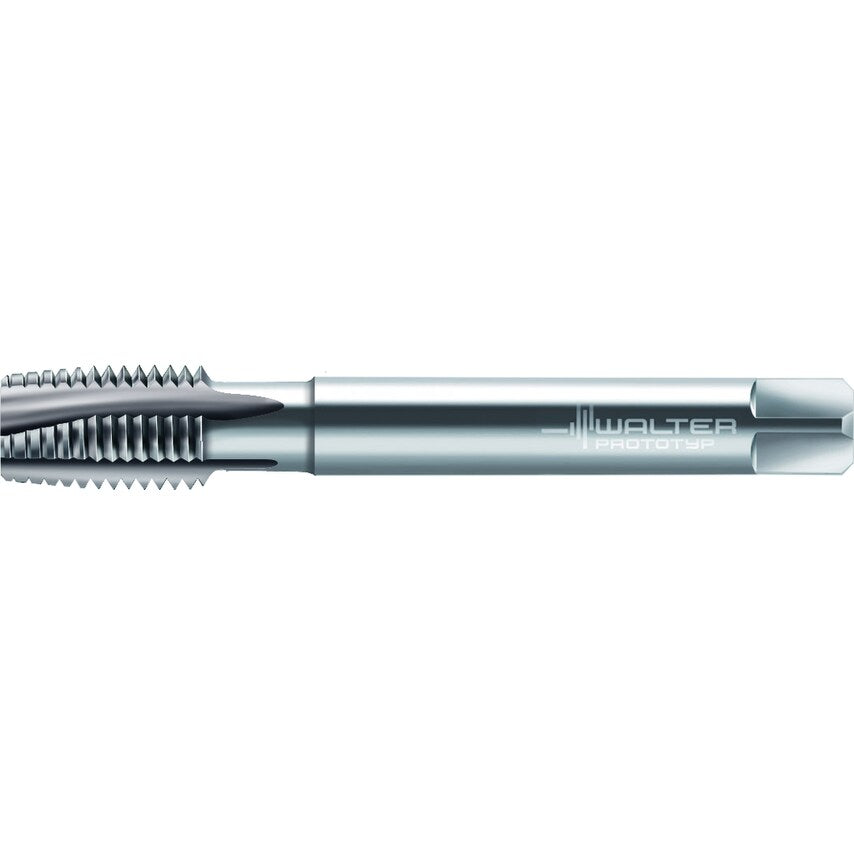

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD UNC/3B DIN 2184-1 Suitable for through hole UNC 5/8-11 P=11
| Tool Designation | 22257-UNC5/8 |
| Shank Diameter | 12mm |
| Driving Square Length | 12mm |
| Usable Length | 68mm |
| Number of Grooves | 4 |
| Clamping Width | 9mm |
| Cutting Edge Length | 25mm |
| MFR Part No. | 5078046 |
| Thread Size | UNC 5/8-11 |
| Overall Length | 110mm |
