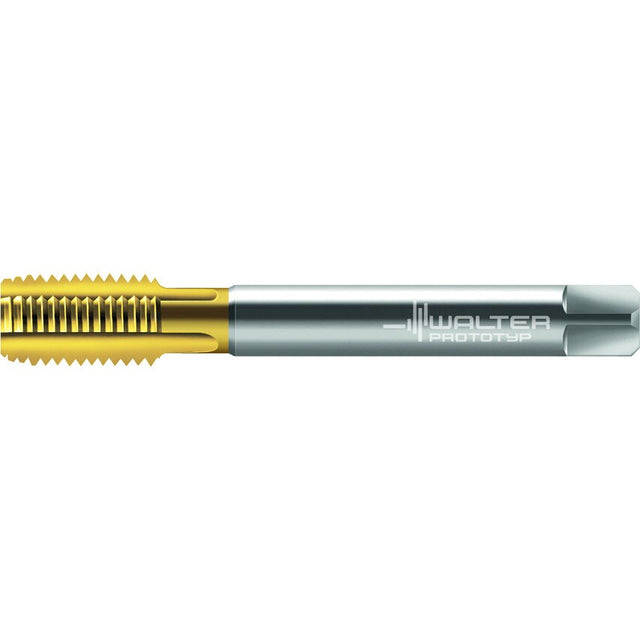

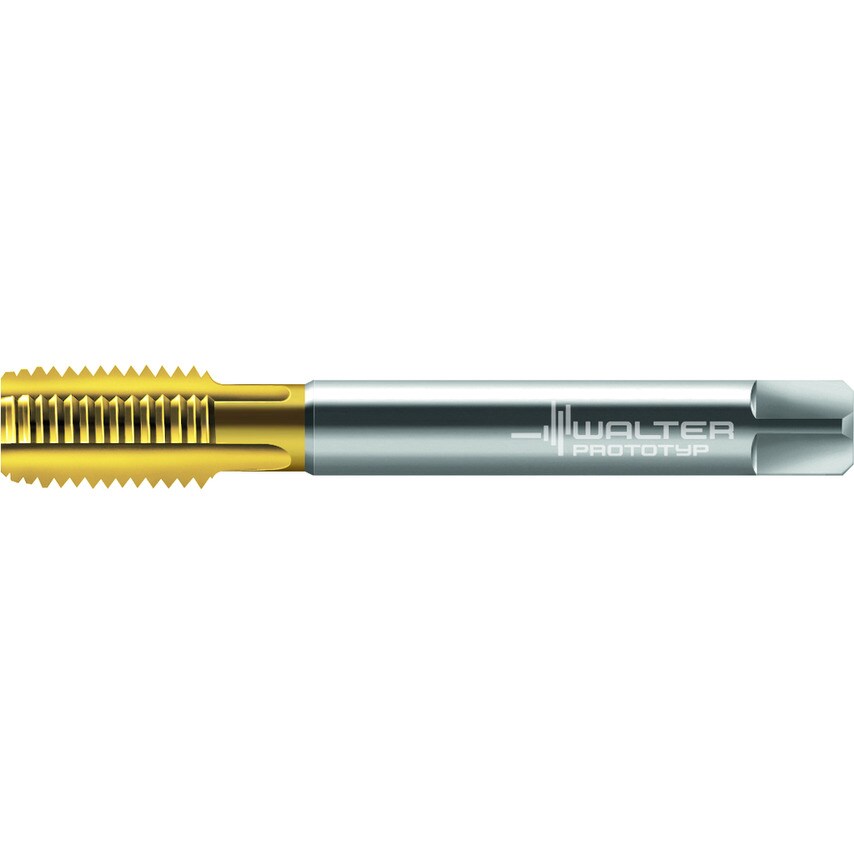

HSS-E machine taps Paradur HT C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6H DIN 376 neutral (straight) flute 0 Suitable for blind hole TIN M 16 P=0.0787in
| Clamping Width | 9mm |
| Usable Length | 68mm |
| Tool Designation | 2036115-M16 |
| Thread Size | M 16 |
| Functional Length | 110mm |
| Thread Pitch | 2mm |
| Cutting Edge Length | 25mm |
| Connection Diameter | 12mm |
| MFR Part No. | 5076354 |
| Number of Grooves | 3 |
| Driving Square Length | 12mm |
