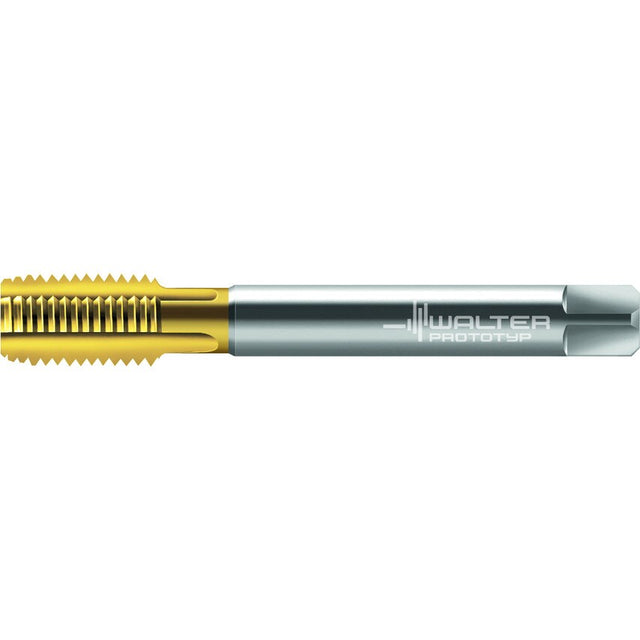

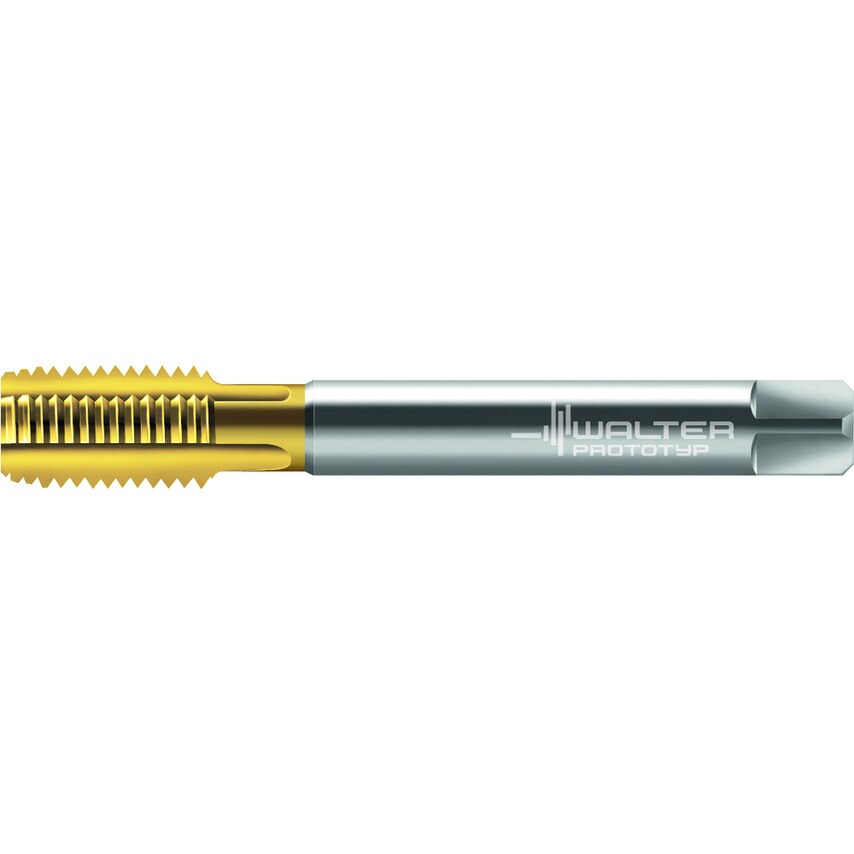

HSS-E machine taps Paradur HT C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6H DIN 376 neutral (straight) flute 0 Suitable for blind hole TIN M 20 P=0.0984in
| Thread Size | M 20 |
| MFR Part No. | 5076356 |
| Number of Grooves | 3 |
| Thread Pitch | 2.5mm |
| Cutting Edge Length | 30mm |
| Usable Length | 95mm |
| Clamping Width | 12mm |
| Connection Diameter | 16mm |
| Functional Length | 140mm |
| Driving Square Length | 15mm |
| Tool Designation | 2036115-M20 |
