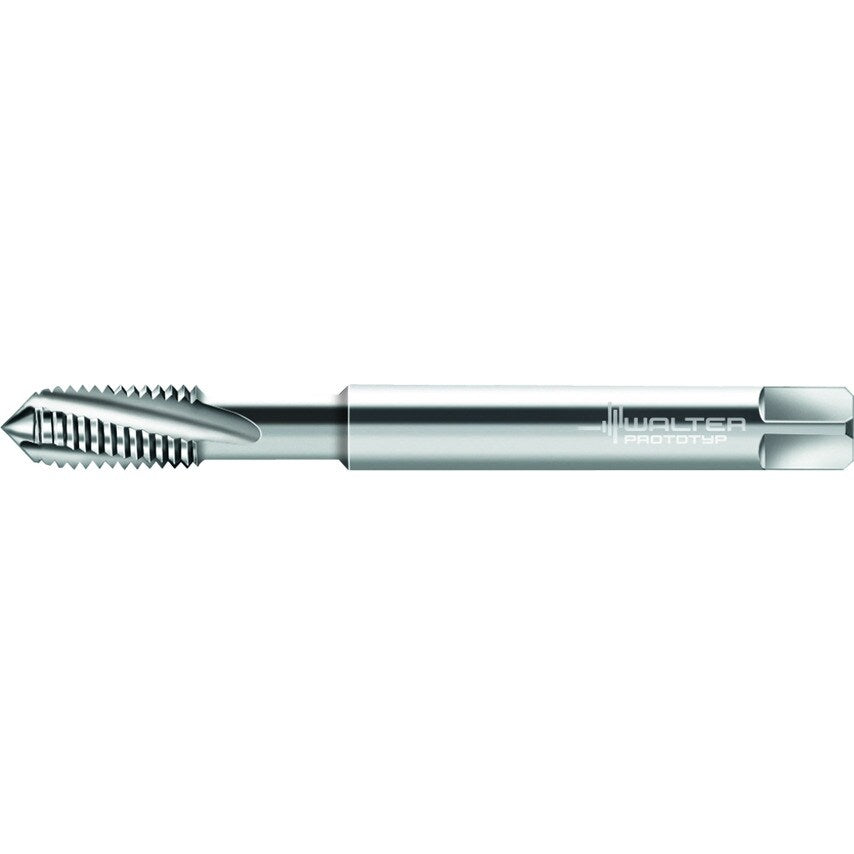

HSS-E PM machine taps Paradur Ti C = 2-3xTP (semi-bottom chamfer) 2xD EGM/4H ~DIN 40435 right hand flute 15 Suitable for blind hole EGM 4 P=0.0276in
| Thread Size | EGM 4 |
| Thread Pitch | 0.7mm |
| Tool Designation | 204069-EGM4 |
| MFR Part No. | 5076445 |
| Functional Length | 70mm |
| Number of Grooves | 3 |
| Connection Diameter | 6mm |
| Clamping Width | 4.9mm |
| Usable Length | 16mm |
| Cutting Edge Length | 16mm |
| Driving Square Length | 8mm |
