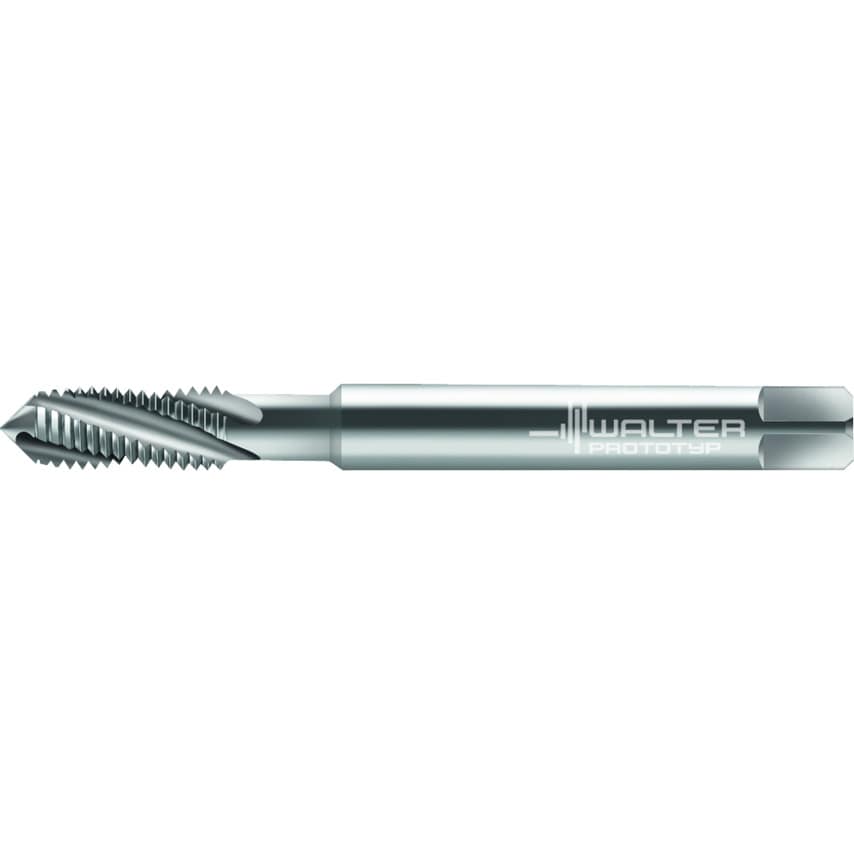

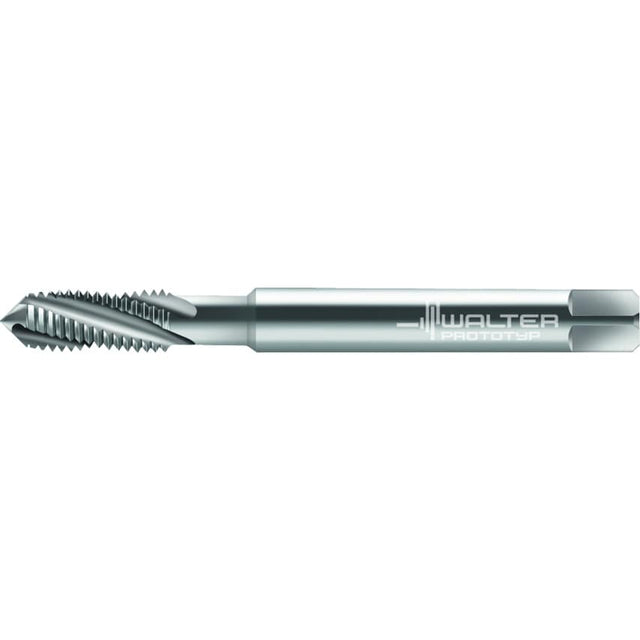

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNC/2B ~DIN 2184-1 right hand flute 25 Suitable for blind hole UNC #4-40 P=40
| Thread Size | UNC #4-40 |
| Usable Length | 10mm |
| Connection Diameter | 3.5mm |
| Functional Length | 56mm |
| Tool Designation | 224102-UNC4 |
| MFR Part No. | 5078180 |
| Clamping Width | 2.7mm |
| Driving Square Length | 6mm |
| Cutting Edge Length | 10mm |
| Number of Grooves | 3 |
