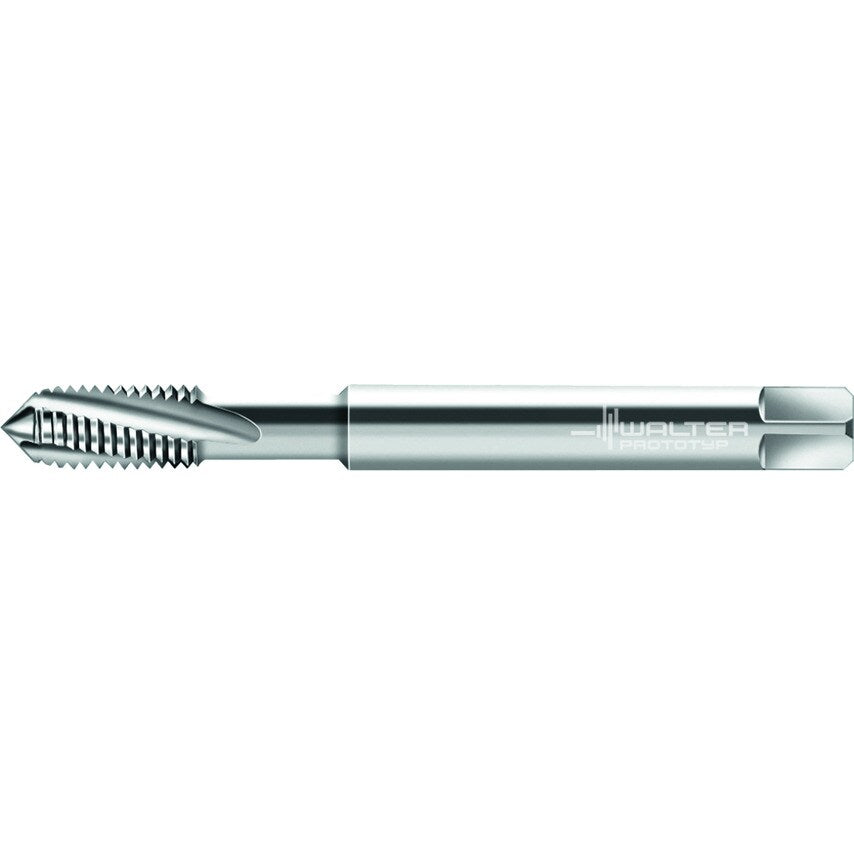

HSS-E PM machine taps Paradur Ti C = 2-3xTP (semi-bottom chamfer) 2xD UNC/3B ~DIN 2184-1 right hand flute 15 Suitable for blind hole UNC 1/4-20 P=20
| Tool Designation | 224164-UNC1/4 |
| Thread Size | UNC 1/4-20 |
| Clamping Width | 5.5mm |
| Driving Square Length | 8mm |
| Usable Length | 25mm |
| Connection Diameter | 7mm |
| MFR Part No. | 5078204 |
| Functional Length | 80mm |
| Cutting Edge Length | 15mm |
| Number of Grooves | 3 |
