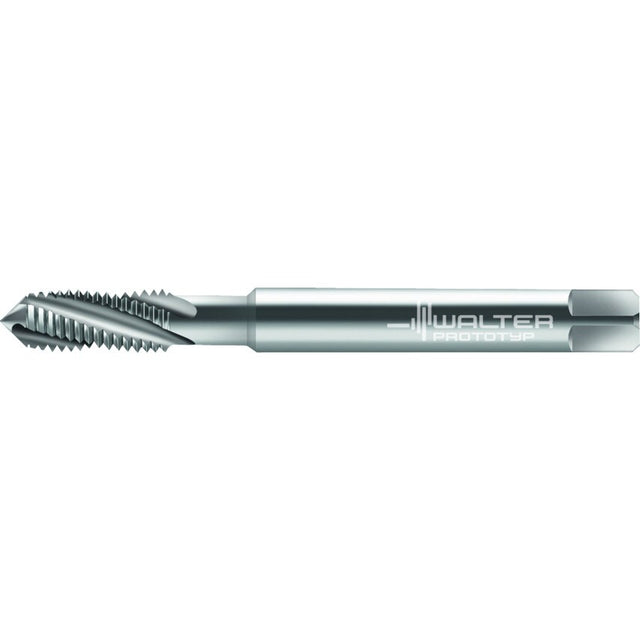

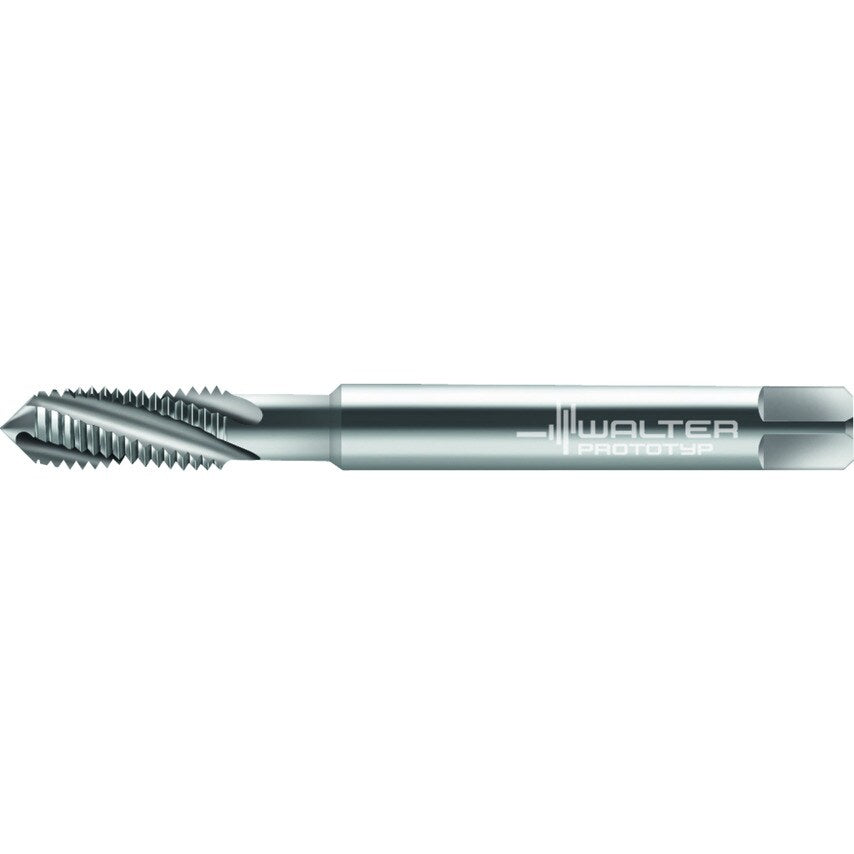

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD M/6HX ~DIN 371 right hand flute 25 Suitable for blind hole M 6 P=0.0394in
| Number of Grooves | 3 |
| Usable Length | 23mm |
| Functional Length | 80mm |
| Cutting Edge Length | 15mm |
| Driving Square Length | 8mm |
| MFR Part No. | 5076493 |
| Connection Diameter | 6mm |
| Thread Size | M 6 |
| Clamping Width | 4.9mm |
| Thread Pitch | 1mm |
| Tool Designation | 204102-M6 |
