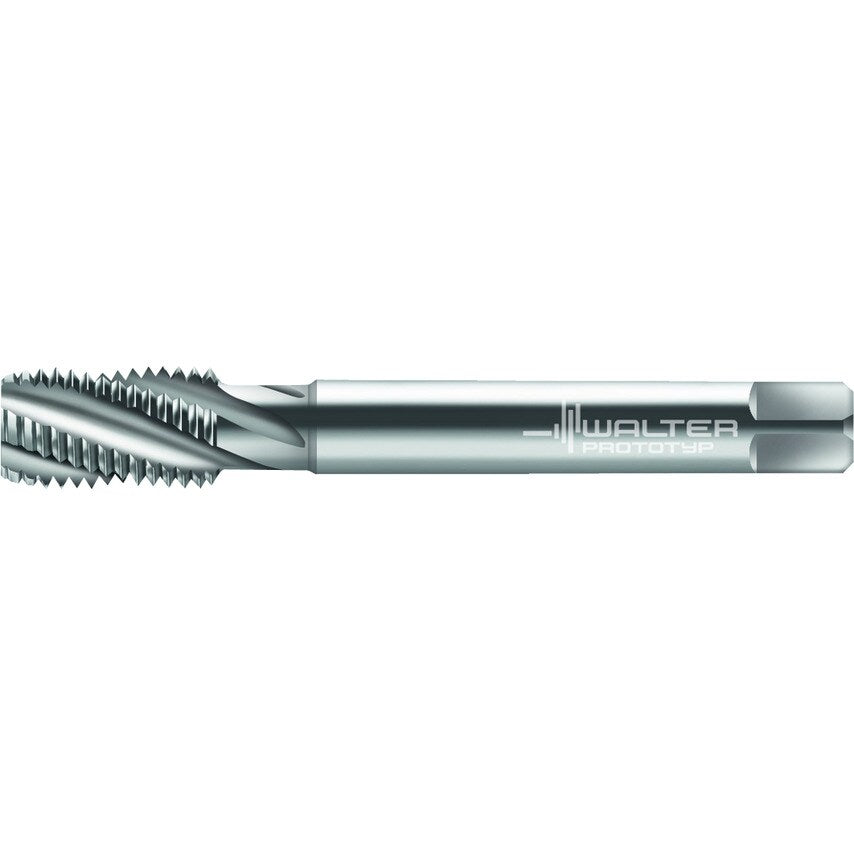

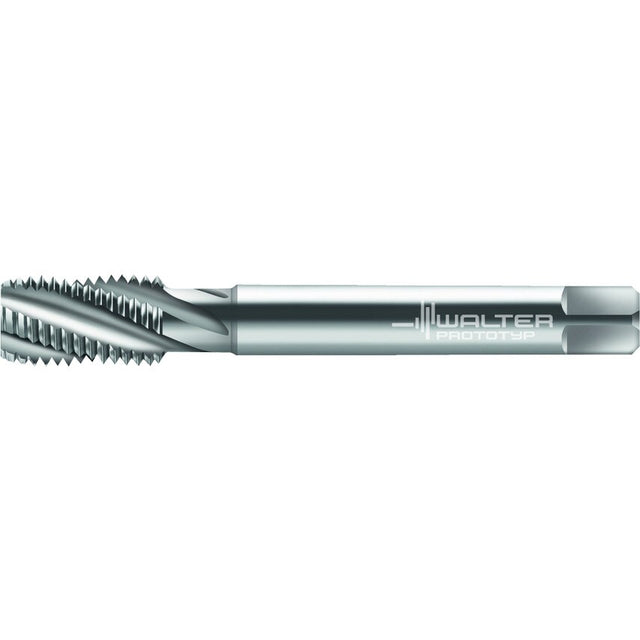

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNC/3B DIN 2184-1 right hand flute 25 Suitable for blind hole UNC 3/4-10 P=10
| Driving Square Length | 14mm |
| Number of Grooves | 5 |
| Cutting Edge Length | 30mm |
| MFR Part No. | 5078233 |
| Connection Diameter | 14mm |
| Thread Size | UNC 3/4-10 |
| Tool Designation | 224604-UNC3/4 |
| Functional Length | 125mm |
| Usable Length | 81mm |
| Clamping Width | 11mm |
