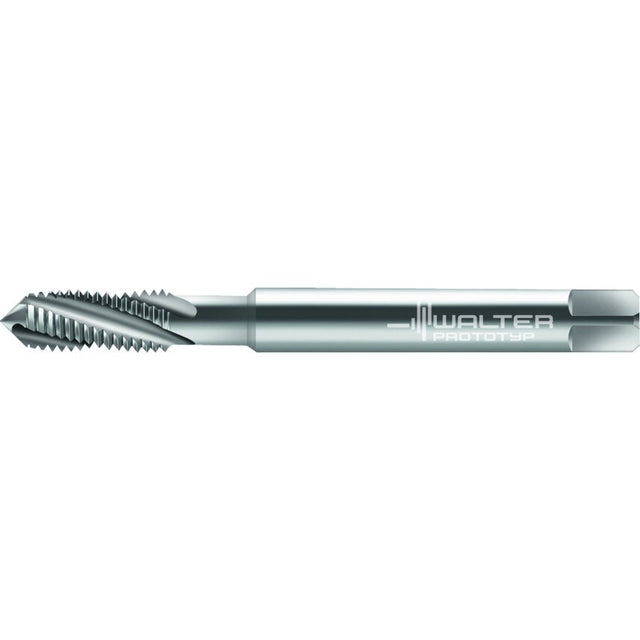

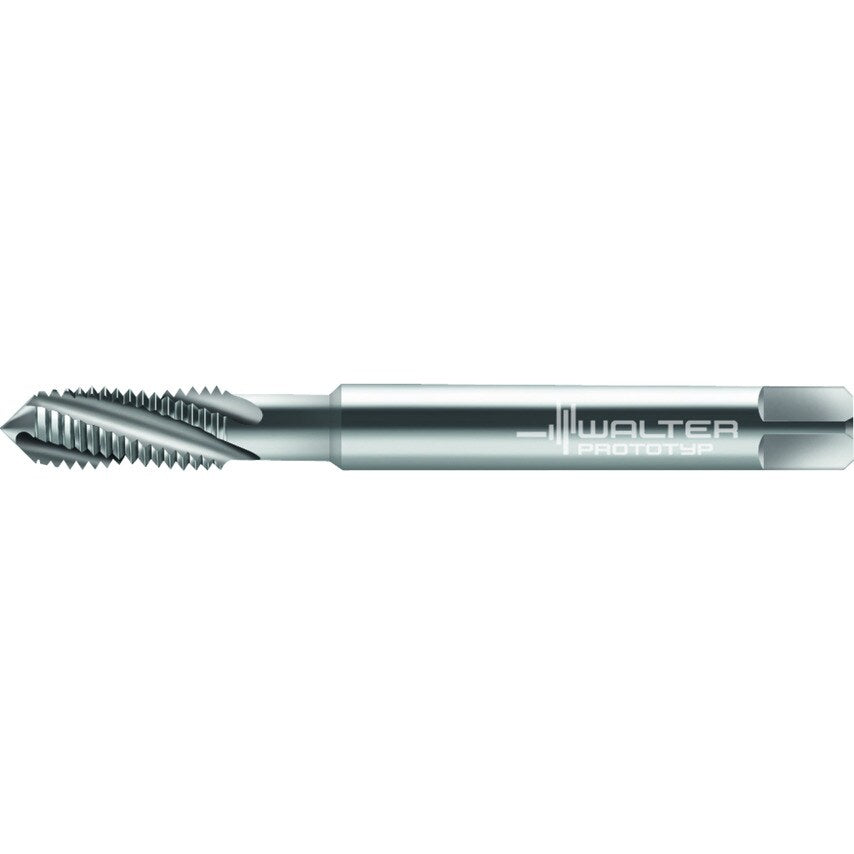

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD M/6HX ~DIN 371 right hand flute 25 Suitable for blind hole M 4 P=0.0276in
| Connection Diameter | 4.5mm |
| Thread Size | M 4 |
| Clamping Width | 3.4mm |
| Driving Square Length | 6mm |
| MFR Part No. | 5076491 |
| Cutting Edge Length | 13mm |
| Thread Pitch | 0.7mm |
| Number of Grooves | 3 |
| Tool Designation | 204102-M4 |
| Usable Length | 42mm |
| Functional Length | 63mm |
