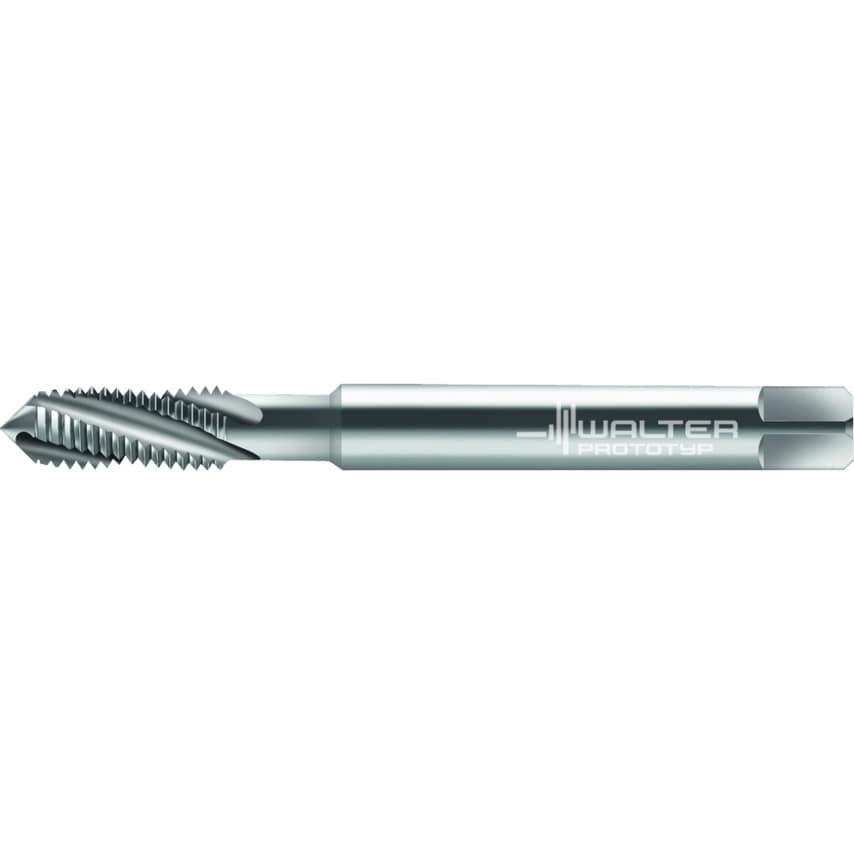

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD M/4HX ~DIN 371 right hand flute 25 Suitable for blind hole M 10 P=0.0591in
| Driving Square Length | 11mm |
| Functional Length | 100mm |
| Clamping Width | 8mm |
| Connection Diameter | 10mm |
| Tool Designation | 204104-M10 |
| Usable Length | 33.5mm |
| Cutting Edge Length | 20mm |
| Thread Size | M 10 |
| Number of Grooves | 4 |
| MFR Part No. | 5076503 |
| Thread Pitch | 1.5mm |
