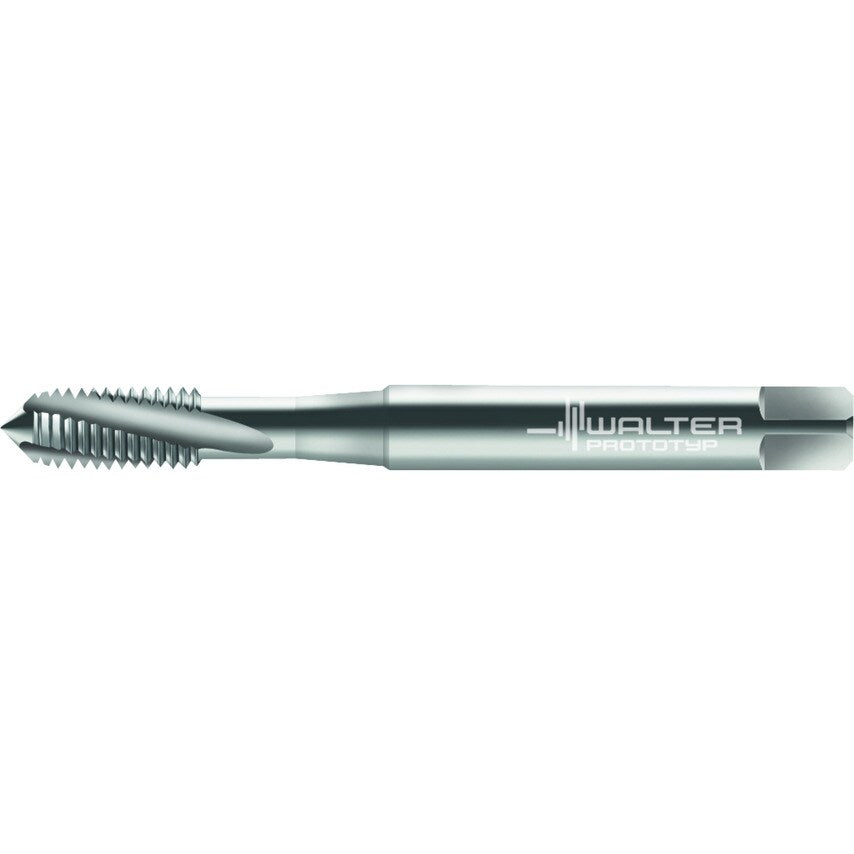

HSS-E machine taps Paradur N C = 2-3xTP (semi-bottom chamfer) 1,5xD UNF/3B DIN 2184-1 right hand flute 15 Suitable for blind hole UNF 5/16-24 P=24
| Clamping Width | 6.2mm |
| Driving Square Length | 9mm |
| Usable Length | 35mm |
| Number of Grooves | 3 |
| Cutting Edge Length | 12mm |
| Thread Size | UNF 5/16-24 |
| MFR Part No. | 5078565 |
| Functional Length | 90mm |
| Connection Diameter | 8mm |
| Tool Designation | 23400-UNF5/16 |
