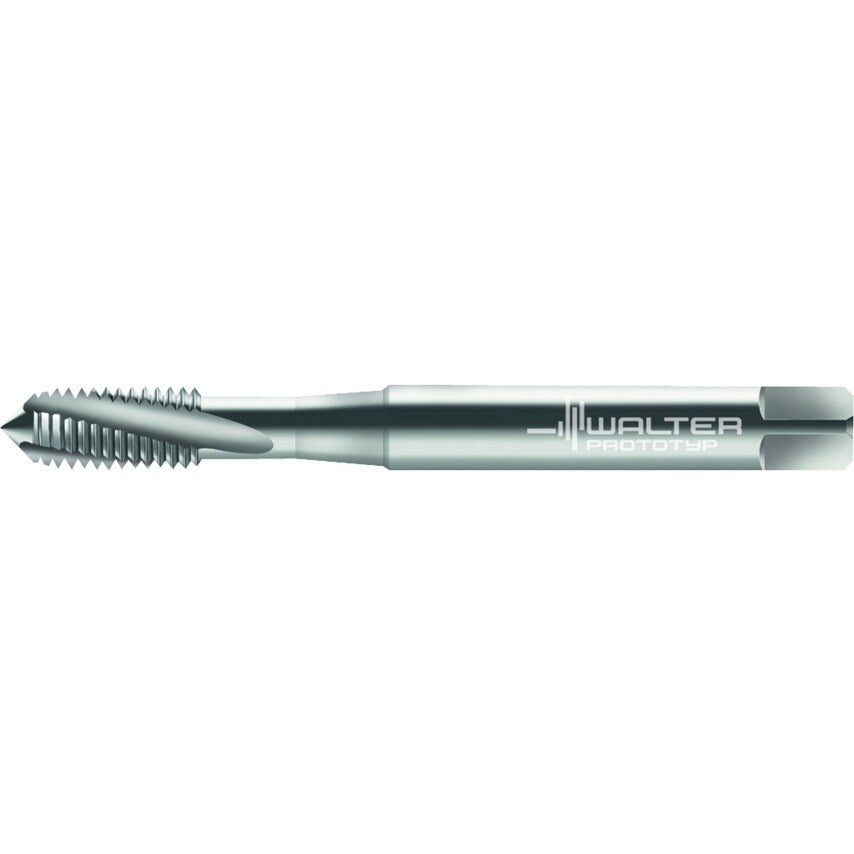

HSS-E machine taps Paradur N C = 2-3xTP (semi-bottom chamfer) 1,5xD UNF/2B DIN 2184-1 right hand flute 15 Suitable for blind hole UNF #8-36 P=36
| Cutting Edge Length | 7mm |
| Usable Length | 21mm |
| Functional Length | 63mm |
| Thread Size | UNF #8-36 |
| Number of Grooves | 3 |
| Tool Designation | 23410-UNF8 |
| Driving Square Length | 6mm |
| MFR Part No. | 5078585 |
| Connection Diameter | 4.5mm |
| Clamping Width | 3.4mm |
