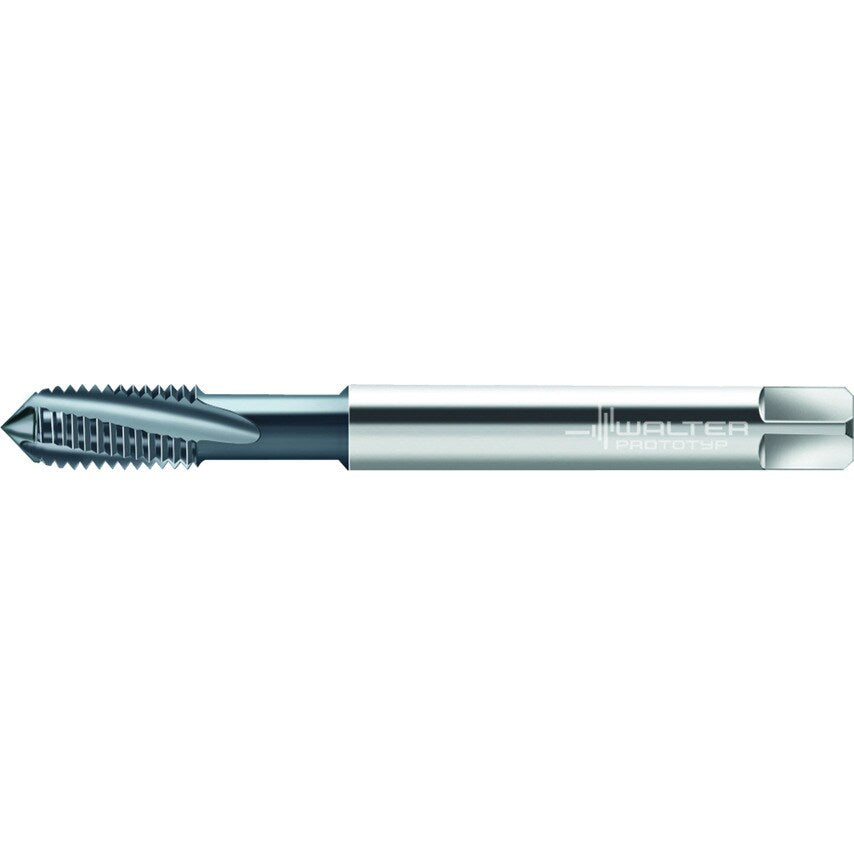

HSS-E PM machine taps Paradur Ti C = 2-3xTP (semi-bottom chamfer) 2xD M/6HX ~DIN 371 right hand flute 15 Suitable for blind hole TICN M 4 P=0.0276in
| MFR Part No. | 5076564 |
| Cutting Edge Length | 13mm |
| Clamping Width | 3.4mm |
| Tool Designation | 2041606-M4 |
| Number of Grooves | 3 |
| Driving Square Length | 6mm |
| Functional Length | 63mm |
| Connection Diameter | 4.5mm |
| Usable Length | 13mm |
| Thread Size | M 4 |
| Thread Pitch | 0.7mm |
