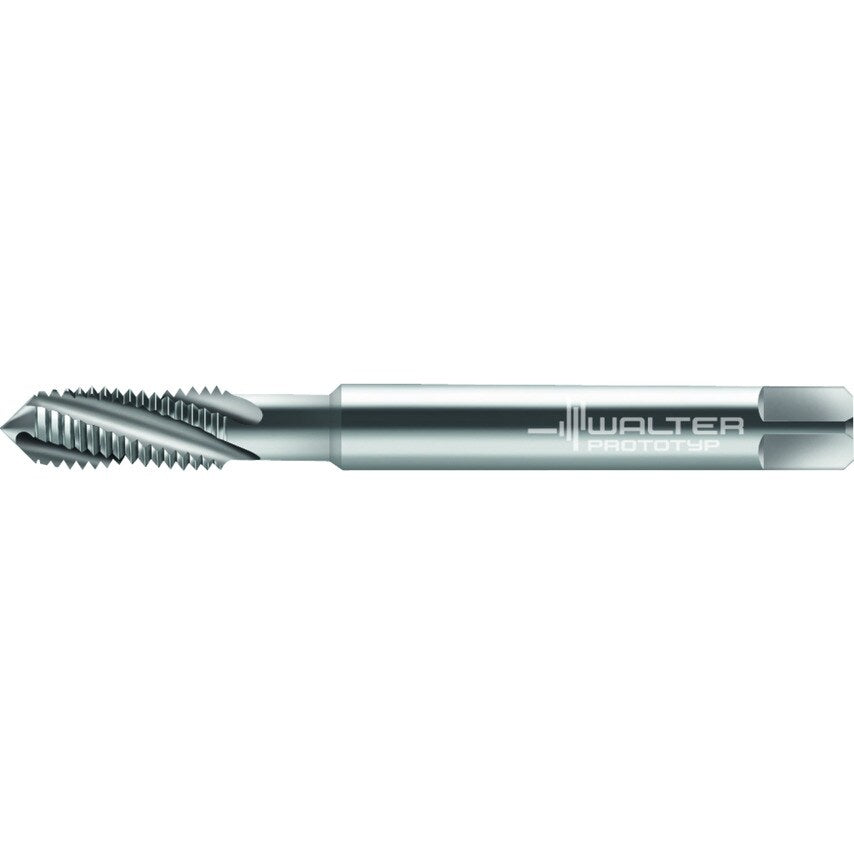

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNF/3B ~DIN 2184-1 right hand flute 25 Suitable for blind hole UNF #10-32 P=32
| Connection Diameter | 6mm |
| Functional Length | 70mm |
| Cutting Edge Length | 16mm |
| Usable Length | 16mm |
| Number of Grooves | 3 |
| Driving Square Length | 8mm |
| Clamping Width | 4.9mm |
| Thread Size | UNF #10-32 |
| MFR Part No. | 5078602 |
| Tool Designation | 234104-UNF10 |
