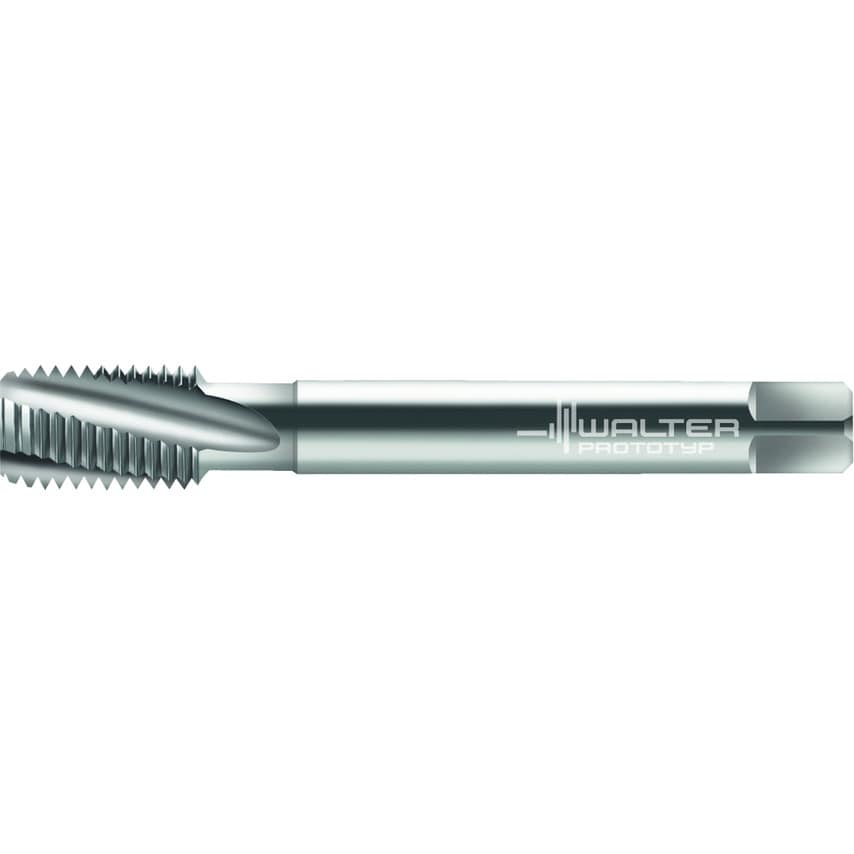

HSS-E machine taps Paradur N C = 2-3xTP (semi-bottom chamfer) 1,5xD UNF/2B DIN 2184-1 right hand flute 15 Suitable for blind hole UNF 1/2-20 P=20
| Driving Square Length | 10mm |
| Functional Length | 100mm |
| Usable Length | 73mm |
| Number of Grooves | 3 |
| Cutting Edge Length | 13mm |
| Tool Designation | 23460-UNF1/2 |
| Thread Size | UNF 1/2-20 |
| Clamping Width | 7mm |
| Connection Diameter | 9mm |
| MFR Part No. | 5078630 |
