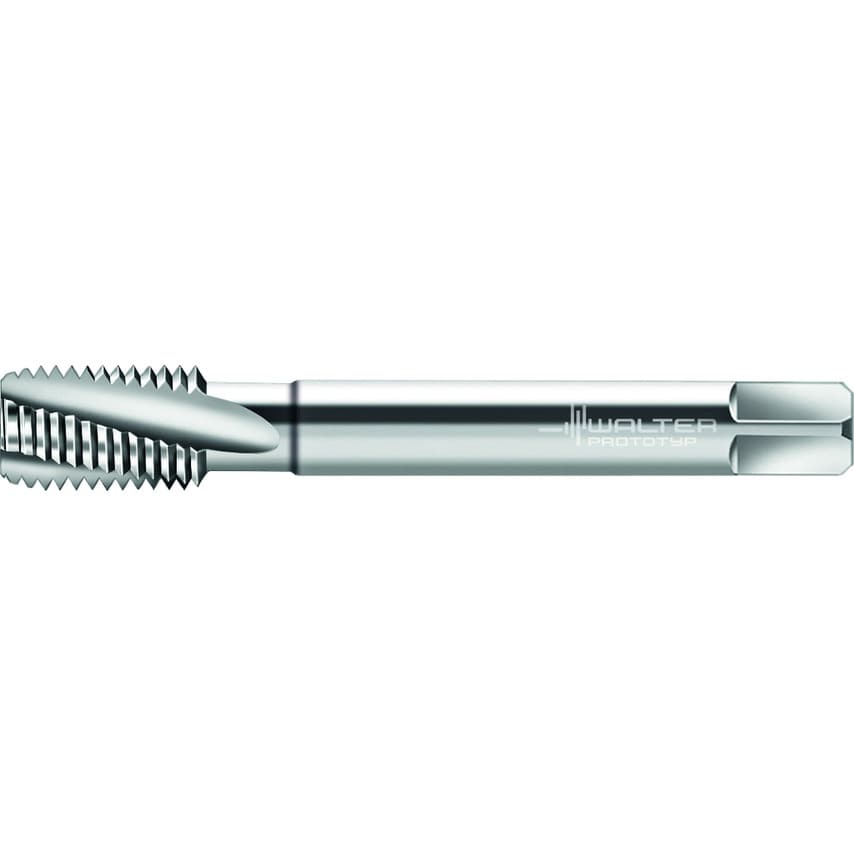

HSS-E PM machine taps Paradur Ti C = 2-3xTP (semi-bottom chamfer) 2xD M/6HX DIN 376 right hand flute 15 Suitable for blind hole M 20 P=0.0984in
| Connection Diameter | 16mm |
| MFR Part No. | 5076631 |
| Clamping Width | 12mm |
| Functional Length | 140mm |
| Cutting Edge Length | 30mm |
| Number of Grooves | 4 |
| Thread Pitch | 2.5mm |
| Thread Size | M 20 |
| Driving Square Length | 15mm |
| Tool Designation | 20466-M20 |
| Usable Length | 95mm |
