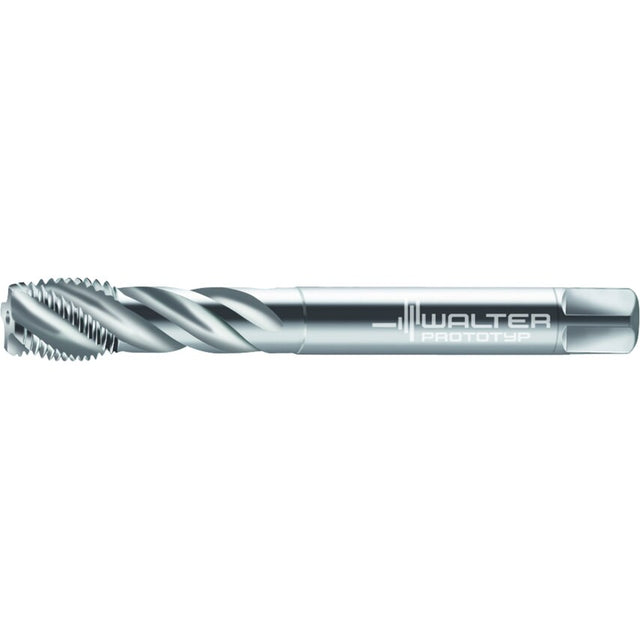

HSS-E machine taps Paradur Uni C = 2-3xTP (semi-bottom chamfer) 3xD G/NORMAL DIN 5156 right hand flute 40 Suitable for blind hole G 1/4-19 P=19
| Connection Diameter | 11mm |
| Usable Length | 71mm |
| Tool Designation | 7456770-G1/4 |
| Material | HSSE |
| Thread Pitch | 19 |
| Threads Per Inch | 19 |
| MFR Part No. | 5200942 |
| Clamping Width | 9mm |
| Tap Type | Machine Tap |
| Number of Grooves | 4 |
| Functional Length | 100mm |
| Cutting Edge Length | 15mm |
| Thread Size | G 1/4-19 |
| Driving Square Length | 12mm |
