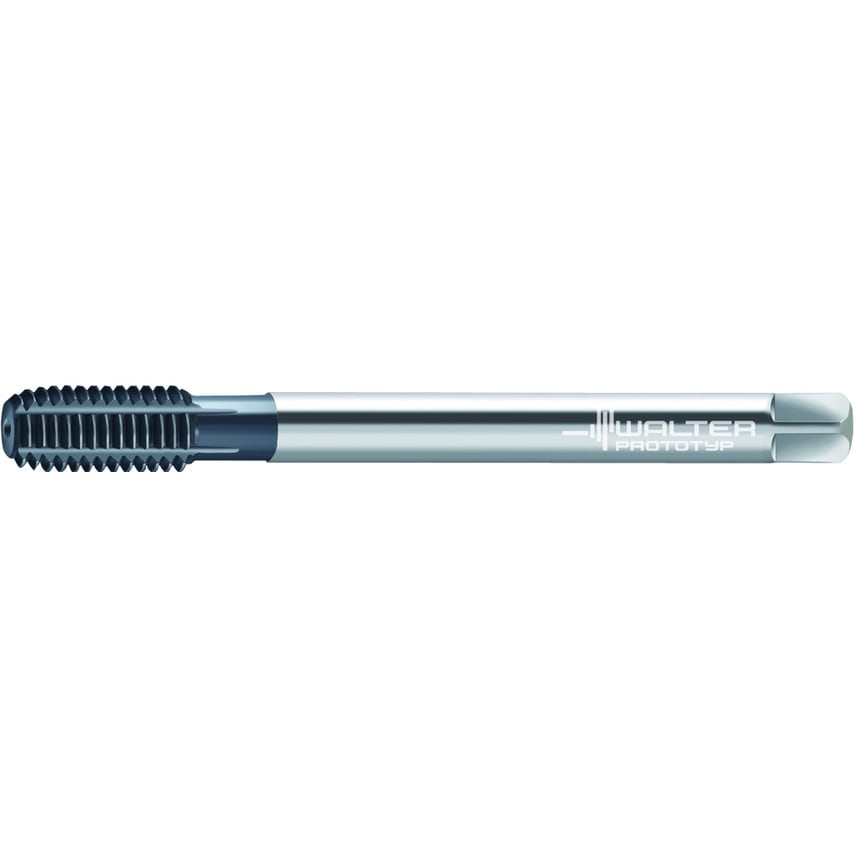

HSS-E machine thread formers Protodyn SF C = 2-3xTP (semi-bottom chamfer) 3,5xD MF/6HX DIN 2174 Suitable for blind hole TICN Suitable for through hole MF 12x1.5 P=0.0591in
| Connection Diameter | 9mm |
| Material | HSSE |
| Driving Square Length | 10mm |
| Thread Size | MF 12x1.5 |
| Usable Length | 73mm |
| MFR Part No. | 5200955 |
| Finish/Coating | TiCN |
| Clamping Width | 7mm |
| Tool Designation | D7166706-M12X1.5 |
| Functional Length | 100mm |
| Cutting Edge Length | 21mm |
| Number of Grooves | 5 |
| Thread Pitch | 1.5mm |
