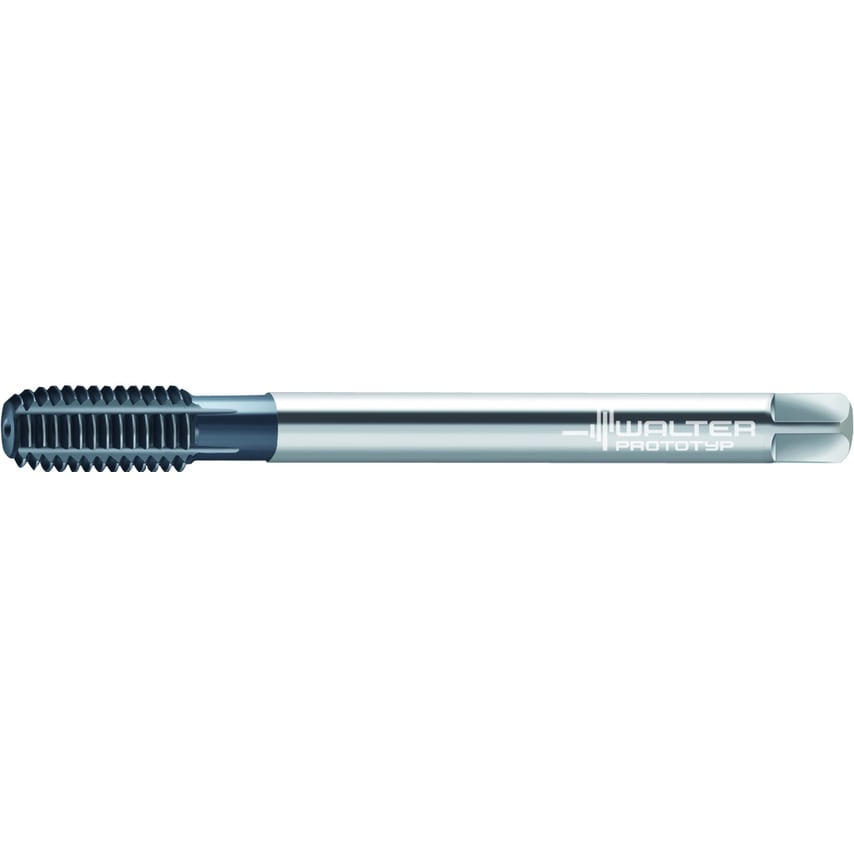

HSS-E machine thread formers Protodyn SF C = 2-3xTP (semi-bottom chamfer) 3,5xD MF/6HX DIN 2174 Suitable for blind hole TICN Suitable for through hole MF 10x1.25 P=0.0492in
| Thread Pitch | 1.25mm |
| MFR Part No. | 5200961 |
| Finish/Coating | TiCN |
| Usable Length | 77mm |
| Driving Square Length | 8mm |
| Tool Designation | D7166706-M10X1.25 |
| Thread Size | MF 10x1.25 |
| Number of Grooves | 5 |
| Functional Length | 100mm |
| Cutting Edge Length | 20mm |
| Clamping Width | 5.5mm |
| Connection Diameter | 7mm |
| Material | HSSE |
