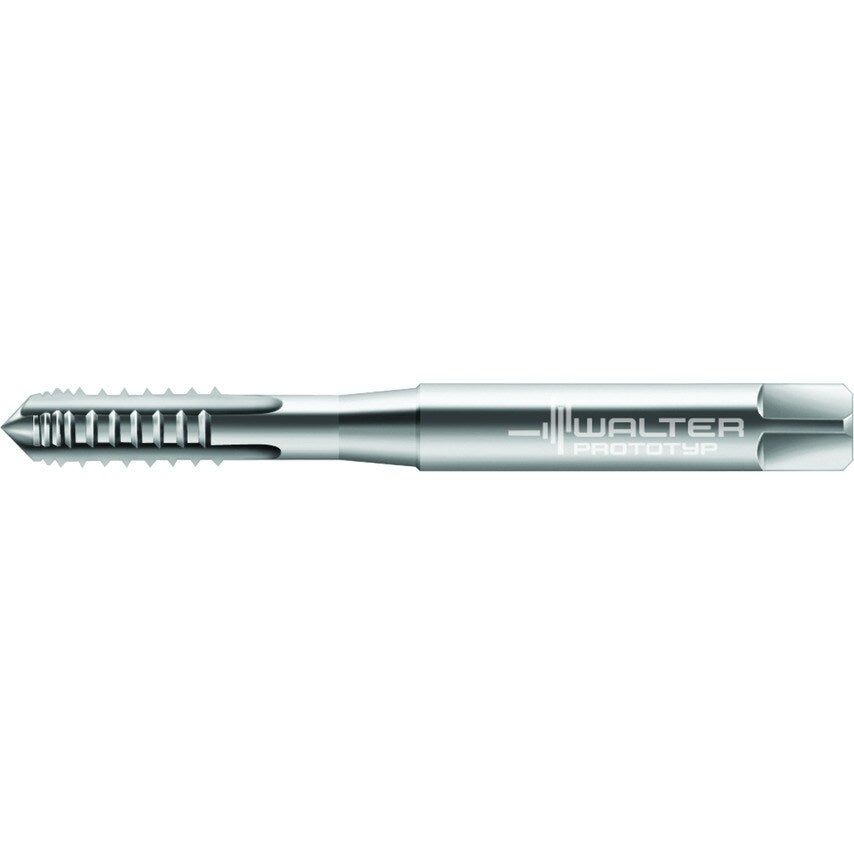

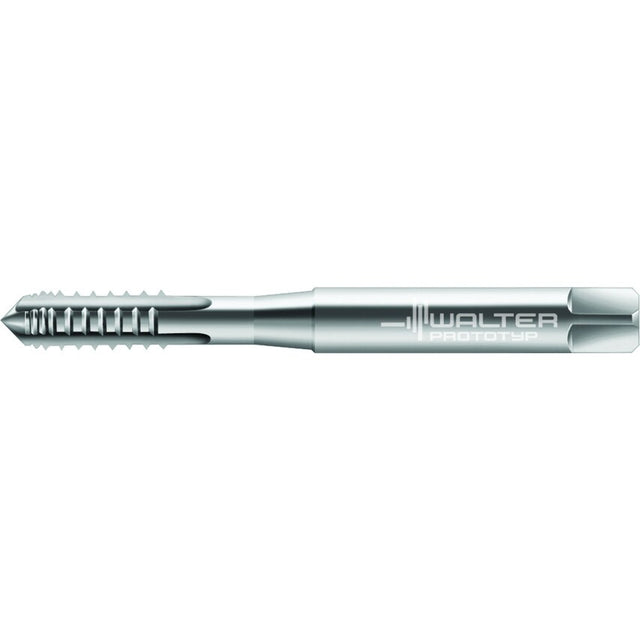

HSS-E machine taps Paradur H AZ C = 2-3xTP (semi-bottom chamfer) 1,5xD M/6H DIN 371 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole M 4 P=0.0276in
| Clamping Width | 3.4mm |
| Number of Grooves | 3 |
| Driving Square Length | 6mm |
| MFR Part No. | 5079226 |
| Thread Size | M 4 |
| Cutting Edge Length | 12mm |
| Usable Length | 21mm |
| Connection Diameter | 4.5mm |
| Thread Pitch | 0.7mm |
| Functional Length | 63mm |
| Tool Designation | 40311-M4 |
