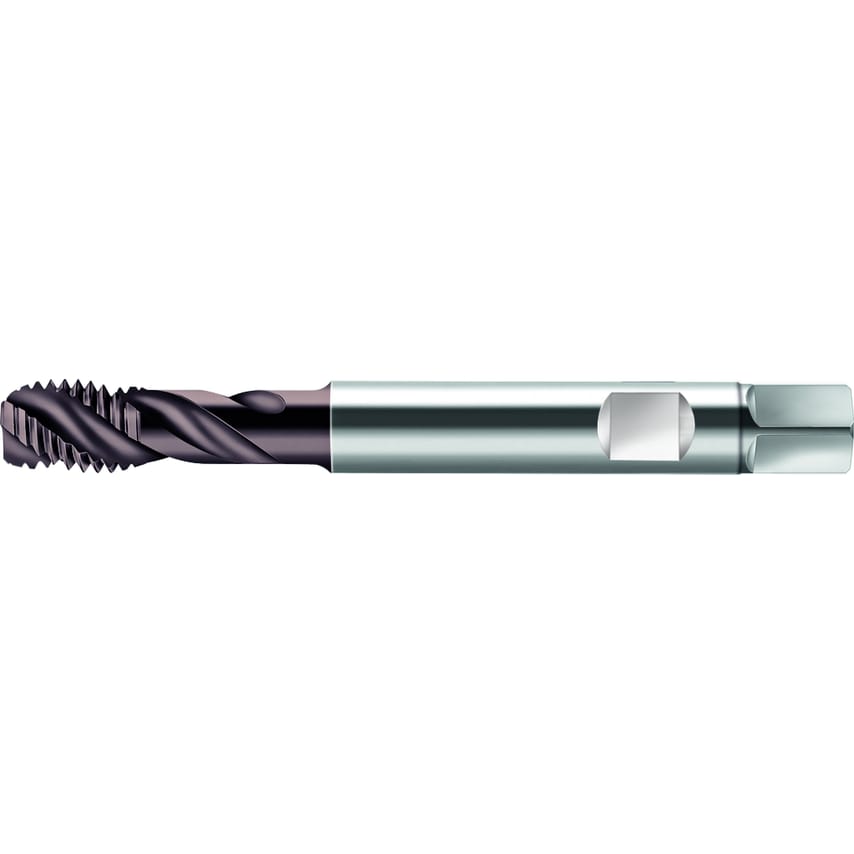

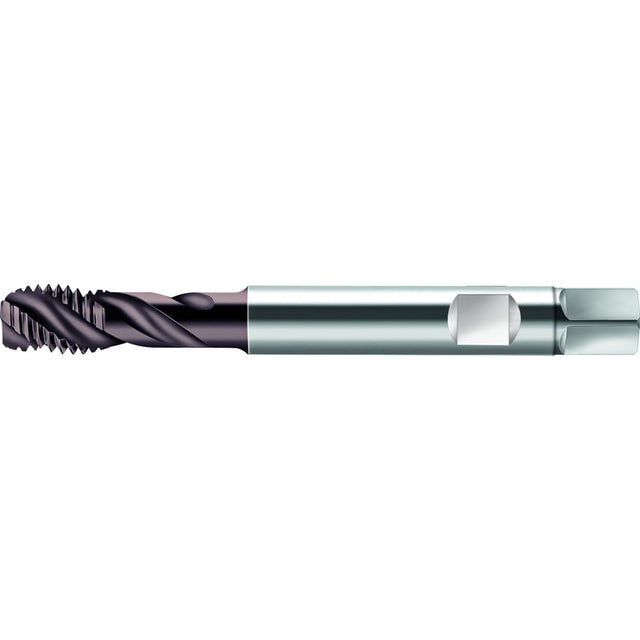

HSS-E machine taps Paradur Synch. C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX ~DIN 376 right hand flute 40 Suitable for blind hole THL M 16 P=0.0787in
| Tool Designation | S2056312-M16 |
| Number of Grooves | 4 |
| MFR Part No. | 5101710 |
| Thread Pitch | 2mm |
| Clamping Width | 12mm |
| Thread Size | M 16 |
| Usable Length | 65mm |
| Cutting Edge Length | 21mm |
| Connection Diameter | 16mm |
| Functional Length | 110mm |
| Driving Square Length | 15mm |
