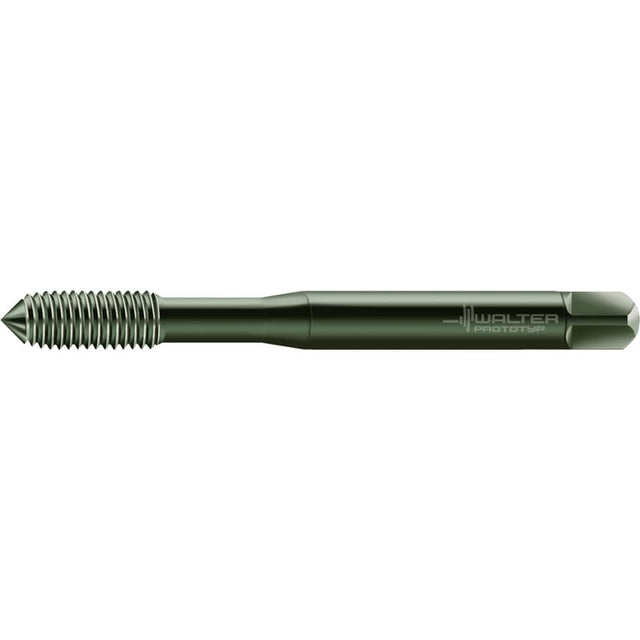

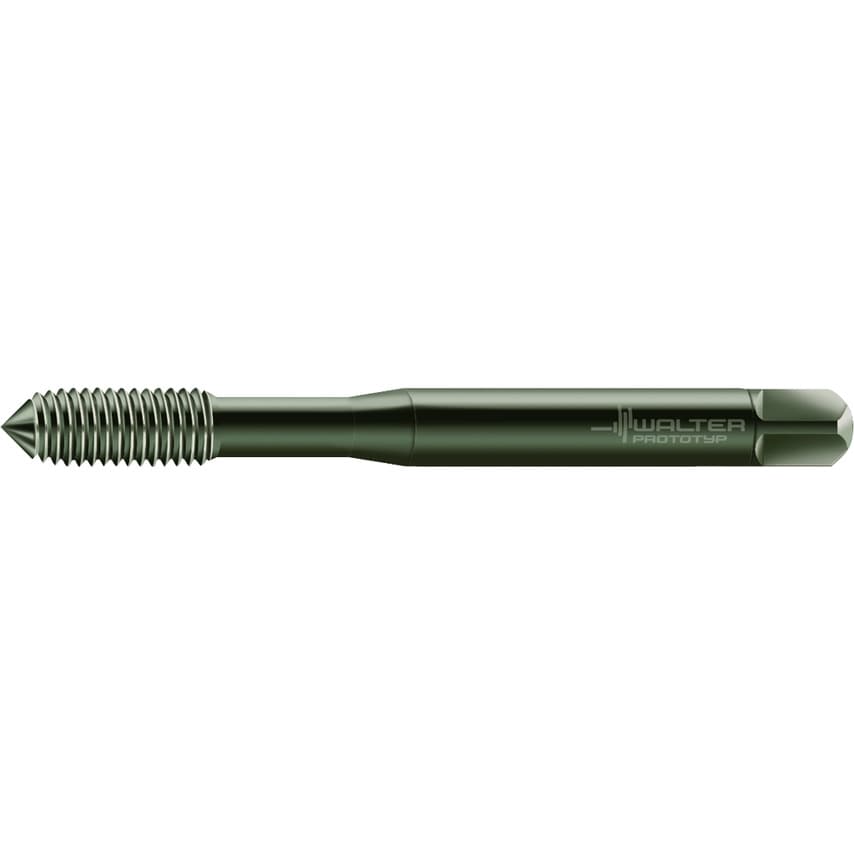

HSS-E machine thread formers Protodyn C C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 2174 Suitable for blind hole NID Suitable for through hole M 2.5 P=0.0177in
| Cutting Edge Length | 8mm |
| Driving Square Length | 5mm |
| Tool Designation | D70611-M2.5 |
| Thread Size | M 2.5 |
| Functional Length | 50mm |
| Connection Diameter | 2.8mm |
| MFR Part No. | 5201780 |
| Clamping Width | 2.1mm |
| Number of Grooves | 3 |
| Material | HSSE |
| Finish/Coating | NID |
| Thread Pitch | 0.45mm |
| Usable Length | 12.5mm |
