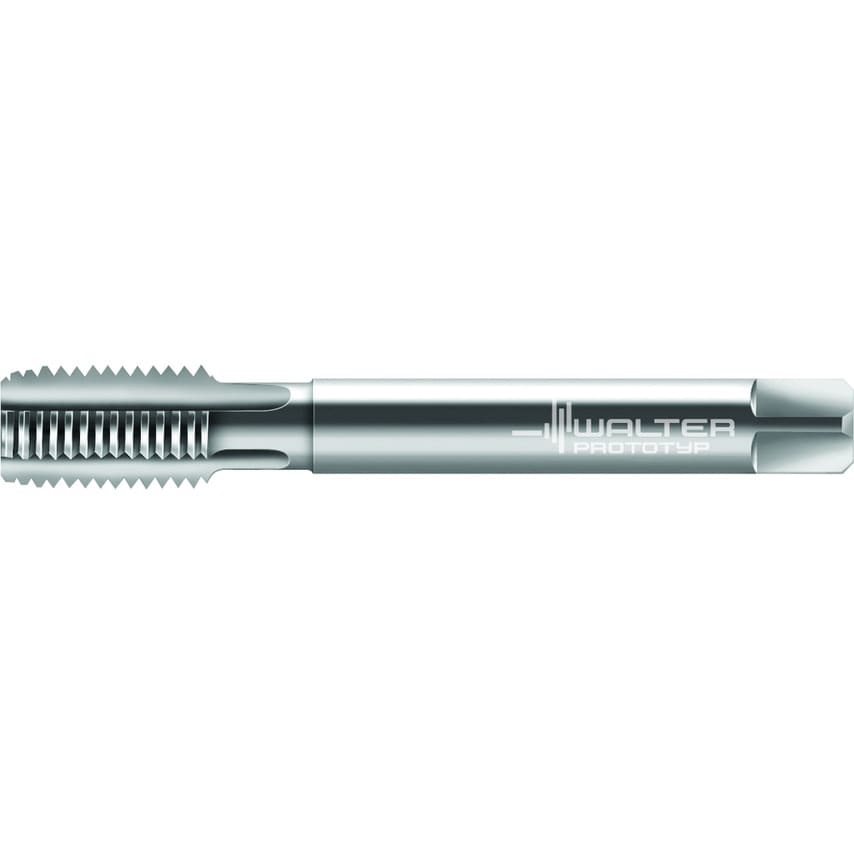

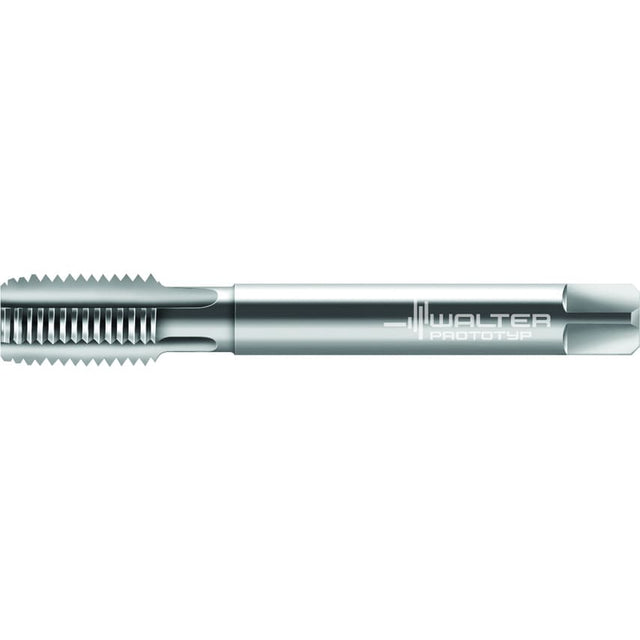

HSS-E machine taps Paradur H C = 2-3xTP (semi-bottom chamfer) 1,5xD MF/6H DIN 374 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole MF 14x1 P=0.0394in
| Connection Diameter | 11mm |
| Driving Square Length | 12mm |
| Thread Size | MF 14x1 |
| Cutting Edge Length | 21mm |
| Thread Pitch | 1mm |
| Usable Length | 71mm |
| MFR Part No. | 5077569 |
| Number of Grooves | 4 |
| Tool Designation | 21368-M14X1 |
| Functional Length | 100mm |
| Clamping Width | 9mm |
