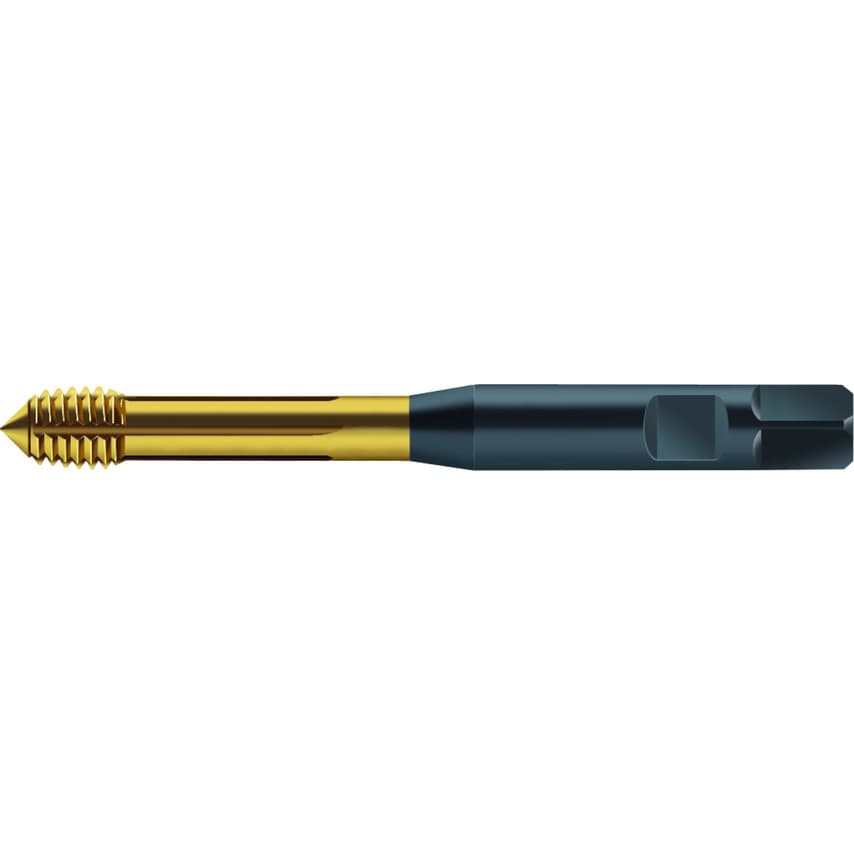

HSS-E machine thread formers Protodyn S Synch. C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX ~DIN 2174 Suitable for blind hole TIN Suitable for through hole M 10 P=0.0591in
| Functional Length | 100mm |
| Clamping Width | 8mm |
| Number of Grooves | 5 |
| Cutting Edge Length | 9mm |
| Driving Square Length | 11mm |
| MFR Part No. | 5101723 |
| Connection Diameter | 10mm |
| Tool Designation | S2061305-M10 |
| Usable Length | 39mm |
| Thread Size | M 10 |
| Thread Pitch | 1.5mm |
